Key Specifications



Smart Function (Thermal Imaging)

  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mK (25°C), F#=1.1
  • Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • Advanced fire detection algorithm
  • Bi-spectrum image fusion, picture in picture preview

Thermal Imaging Module Function

  • ​160 × 120 (the resolution of output image is 320 × 240) resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement

Thermal Module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Detector Pitch: 17um
Response Wavebond: 8um to 14um

Optical Camera
Min. Illumination: Color: 0.002 lux @ (F1.2 , AGC On )

B/W : 0.0002 lux @ (F1.2 , AGC On )

Max. Image Resolution: 1920 × 1080
Focal Length: 6 mm
WDR: 120dB
Shutter Speed: 1 to 1/100,000s
Day & Night: IR Cut Filter with Auto Switch

Image Function
Bi-spectrum Image Fusion: Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture: Combins details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function
VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA

rules

Temperature Measurement: Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range: -20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy: ±8 ° C (14.4 ° F)
Fire Detection: Support 10 fire points

Infrared
IR IntenSity and Angle: Auto Adjust

Network
Main Stream: Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240))
Sub Stream: Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240))
Video Compression: H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile
Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I

GMP,ICMP,DHCP, PPPoE, Bonjour

Simultaneous live view: Up to 20-ch
User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,

IP address filtering

Integration
Alarm Input: 1-ch Input (0-5V DC)
Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input: 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output: Linear Level; Impedance: 600Ω
Analog Video Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming: Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client: iVMS-4200
Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

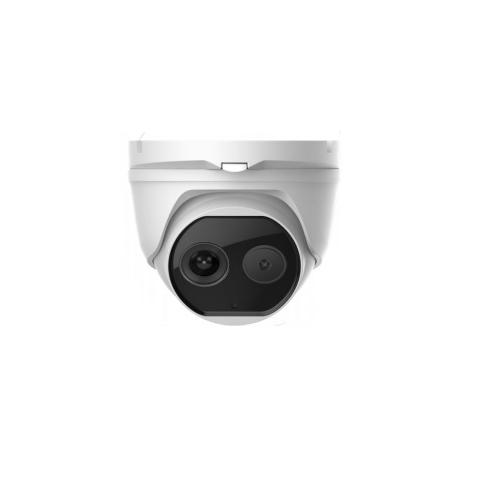

Thermal & Optical Hikvision Network Turret Camera DS-2TD1217-2/3/6 V1
