Key Specifications
Product Description

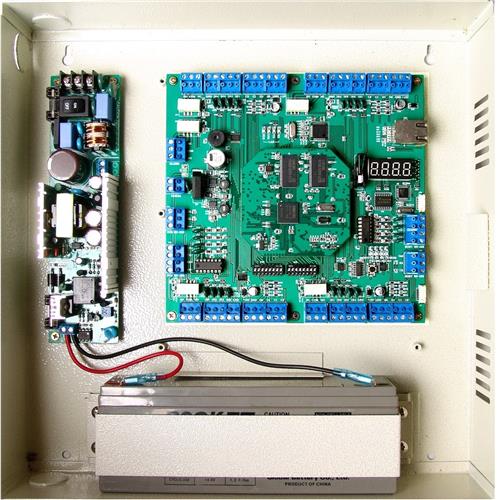

The FC3400 controller consists of a PCB board, a power supply, and a rechargeable battery. This controller is mainly installed in important facilities because it has a large event storage capacity and can prevent sudden interruption of power supply. In addition, it has a controller function, so you have to connect a separate reader (fingerprint reader, RF card reader, or keypad reader) and control four doors.

Main Specification

> CPU : 400MHz 32bit Microprocessor

> Program / memory : 64MByte SDRAM / 128Mbyte NAND Flash Memory

> Power/communication : 12V / 1.5A or more / RS232, RS422, RS485, Ethernet

> ID registration / event storage : Save 200,000 users / 400,000 events

> Reader port : 4 Wiegand: 26bit ~ 96bit automatic recognition, 4 / 8bit Burst for PIN 1 fingerprint reader and R / W Mifare card support

> Input port : 16 (4 exit buttons, 4 door states, 8 PC S/W settings such as intrusion detection, fire alarm)

> Output Relay (Port) : Relay output 4 pieces / 120VAC 0.5A, 24VDC 1A TTL output 8 pieces / DC5V Maximum rated current 40mA

> LED indicator : 8 Communication status, 4 Output status, 1 Power, 4 Operation status and Self-check result display 7-Segment LED

> Buzzer : Piezo buzzer

> Size (W x H x T) : Iron plate case(320 x 320 x 63mm), PCB(182 x 175 x 25mm)

> Weight (PCB, finished product) : 300g (pcb only), 3.2Kg (PCB, power supply, rechargeable battery, case with steel case)

FC3400 Access Control Terminal
