Euresys

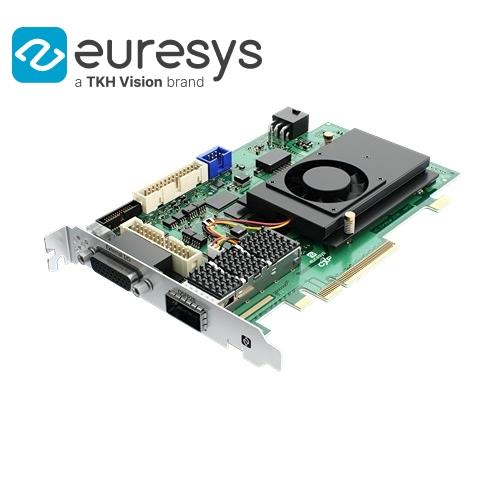

Four-connection CoaXPress CXP-12 frame grabber with on-board laser line extraction for 3D profiling

- Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth
- PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
- Laser line extraction with zero host CPU usage
- Single and Dual Laser Line Extraction into a depth map
- Real-time generation of 16-bit 3D height maps
- Choice of algorithms: Maximum, Peak, Center of Gravity (COG)
- Precision: up to 1/256 pixel (with Peak and COG algorithms)
- Performance: 76,000 profiles/s from 1024 x 128 images. 152,000 profiles/s from 1024 x 64 images
- Memento Event Logging Tool

- Acquire images from the fastest and highest resolution cameras
- Real-time generation of 16-bit 3D height maps
- Laser line extraction with zero host CPU usage
- Dual laser line extraction
- Long cable support
- Power over CoaXPress
- Use standard coaxial cables
- Micro-BNC (HD-BNC™) connectors for reliable connection
- Area-scan triggering capabilities
- High-performance DMA (Direct Memory Access)
- Compatible with eGrabber
- Compliant with GenICam
- C2C-Link camera synchronization
- Windows, Linux and macOS drivers available
- General purpose I/O lines
