Key Specifications

ENFORCER's UL-listed overhead door surface mount magnetic contacts for N.C. circuits come with gold and deactivated rhodium plating for longer life and reliability.  Reed switch is contained in curved, low-profile, cast-aluminum housing.  24" (61cm) Wire leads enclosed in stainless-steel cable.  Gap distance: 2-3/4" (70mm)



SM-226LQ For N.C. circuits, UL listed



l  Overhead door surface mount.

l  Gold and deactivated rhodium plating for longer life and reliability.

l  Switch contained in curved, low-profile, cast-aluminum housing.

l  Magnet in gray ABS plastic case mounted on L-shaped bracket.

l  24" (61cm) Wire leads enclosed in stainless-steel cable

l  2-3/4" (70mm) Gap.

l  Switch dimensions: 4-3/8"x1-3/4"x7/16" (111x44x11 mm).



SM-226RQ For N.C. circuits, UL listed

l  Overhead door surface mount.

l  Gold and deactivated rhodium plating for longer life and reliability.

l  Switch contained in curved, low-profile, cast-aluminum housing.

l  Magnet enclosed in round bracket.

l  24" (61cm) Wire leads enclosed in stainless-steel cable.

l  2-3/4" (70mm) Gap.

l  Switch dimensions: 4-3/8"x1-3/4"x7/16" (111x44x11 mm).

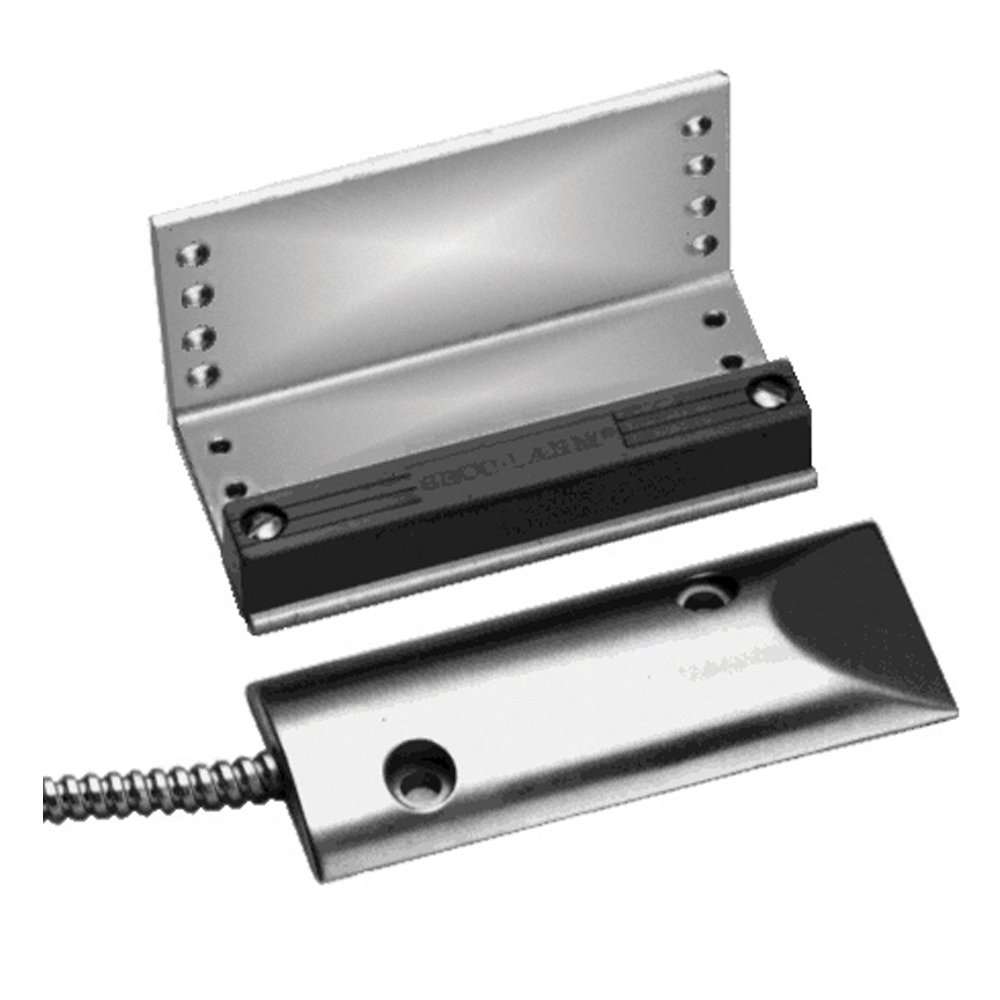

Enforcer Overhead Door Contacts SM-226LQ / SM-226RQ
