Key Specifications
CSS-V12

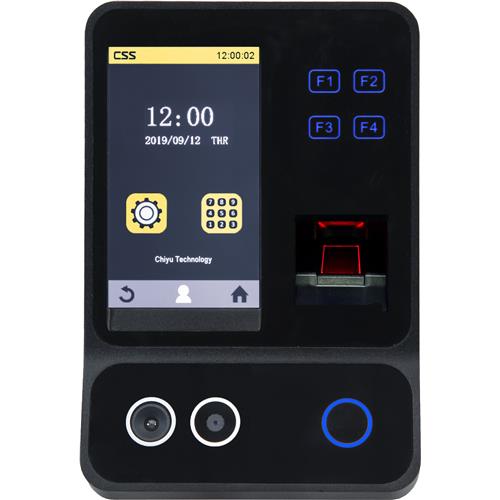

Facial Recognition Time & Attendance and Access Control Terminal

Facial recognition Access Control Terminal can apply both on Access control and Time attendance. With its user-friendly and high security, accompanied by the Robust Performance feature, make this Face Access Controller more reliable in the Market.

Face Access Control and Time Attendance Terminal

FEATURES HIGHLIGHTS
Contactless for ultimate hygiene.
Color screen for face positioning.
Audio prompt.
Various alarms enhance the security level.
The Embedded system enables plug and play.
Desk or wall mounting.
Somac Supported.
GENERAL DATA
Software Application: SoMac
Processor: 1 Ghz High-Speed Digital Processor
Verification Mode: FACE / Card
Proximity: EM / Mifare (Option)
Face User Capacity: 2000 (1: N) Face
Card User Capacity: 10,000 Card
Total User Capacity: 10,000
Record Capacity: 200,000 Records
Security Photo: 200,000 Images
Sensor: Specialized dual sensor
Lighting: 20,000 Lux
Verification: Face, ID + Face, Card + Face, Card / Face, Card + Photo
Speed: Less than 1 second
Time Sets / Time Zones / Group: Yes
Holiday Dates: Yes
Access & Event Logs: Yes
Built-in relay: Contact Door Lock, Door Sensor, and Exit button Input
Scan Distance: 30cm - 80cm
COMMUNICATION DATA
Communication Method: TCP/IP, USB Host, Weigand Output, Push to Server
Communication Environment: LAN / WAN
Ethernet Interface: 10/100M Base-T, Auto Crossover
INDICATION DATA & USER INTERFACE
Audible Speaker: Voice
Buzzer: Single Tone
TFT Color LCD: 3.5 inches
Capacitive Touch Keys: 4 x 4
Anti-Tampering Switch: Yes
ELECTRICAL DATA & CONDITIONS
Operation Voltage: 12V DC / 1.5A
Operation Temperature: 0°C - 40°C
Operation Humidity: 20% - 80%RH
PHYSICAL DATA
Dimensions: 213 x 147 x 94 mm
Weight: 550 g
INTERNATIONAL STANDARDS & WARRANTY
Certification: CE, FCC, ROHS
Warranty: 1 Year
Facial Recognition Access Control And Time Recorder
