Key Specifications

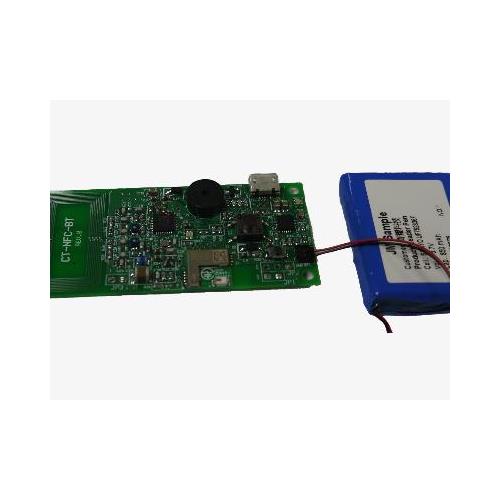

CT-NFC-bt-01 combines the latest 13.56MHz contactless technology with Bluetooth BLE connectivity for NFC/RFID applications. It supports ISO 14443A & ISO 15369 smart cards, MIFARE serial, and most NFC type 1 to 4 & Type V tags. This makes it the ideal device for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. With a compact design and a rechargeable Lithium-ion battery for power, CT-NFC-bt-01 is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets in the market.

Bluetooth 4.1 single-mode(BLE)

Contactless Interface:

PCB integrated antenna

(supports external antenna)

Read/Write speed of up to 424 Kbps

NFC Reader/Writer mode supported

Supports ISO14443A & ISO15693

Supports NFC Type 1 to 4 & Type V

Built-in Peripherals:

Two multi-color LEDs (RGB)

Two Buttons

One Buzzer

Micro-USB connect (for charger)

Battery : Lithium-ion battery (3.7V , 850mA)

Dimensions : 3(W) x 7(L) x 0.6(H) cm

Working mode current 100mA (Max:200mA)

Sleeping mode current 2uA

Operation Temp. -25 to +85 ℃

Bluetooth BLE NFC RFID Reader Module(CT-NFC-bt-01)
