Key Specifications
Specification of Receiver

Operating Voltage:12VDC

Current:< 500mA

Codec:Random code, 128 bits AES two ways encryption, cannot be counterfeit

Memory:Receiver handles up to 6000 Secure Transmitters

I/O Interfaces: 3-channel Relay Output (Toggle mode or Trigger mode)

Radio Technology:433.92 MHz, Phase Lock Loop

Reading Range:90m (line-of-sight, without any obstruction)

Operating Temperature:-20 oC ~ 70 oC (-4 oF ~ 157 oF)

Operating Humidity:0%RH ~ 85%RH



Dimensions:L145 x W90 x H40mm

Specification of Secure Transmitter

Weight: 45g (with Battery CR2032*1)

Dimensions:L58 x W30 x H13mm

Battery life:30 times/day for 2 years

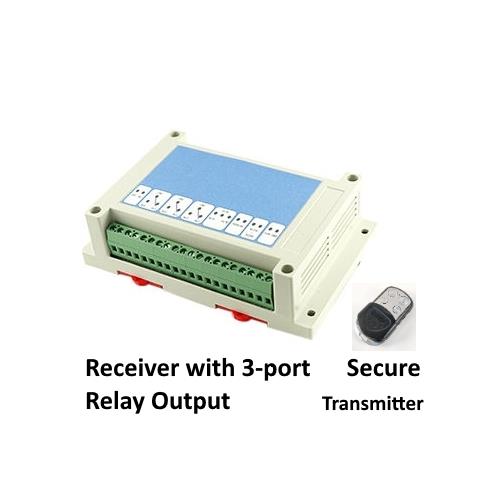

Receiver with 3-port Relay Output for garage door and shutter
