Key Specifications

Q5-AH10H62(X) is full HD H.264 network Mini HD Speed Dome Camera with professional design and output  of 1280x960 real time video for security surveillance. It is built with megapixel motorized varifocal zoom lens( 4.3x optical zoom) for easy adjustable zoom & focus upon the  remote site of NVR, IE browser, Mobile P2P apps and CMS.


Key features
* 1/3 Aptina Megapixel COMS Progressive Scan, 1280*720@30fps, 704*576@30fps
* Built with megapixel motorized varifocal zoom lens 4.3x (2.8-12mm)
* Progressive scan CMOS sensor, easy to capture motion image without jagged edges
* Third generation Array LEDx3, High output with low consumption, max. IR visible range 40m
* Built with megapixel ICR for true day & night surveillance
* Support dual video streams, Support mobile viewer on iOS & Android
* Precise motor with good reaction. Smooth and stable operation to limit deviation less than 0.1 degree
* Horizontal pan 0°-360° endless, vertical tilt 0°-90°, no video blind spot
* Support horizontal pan speed 0.05°-60°/s, vertical tilt speed 0.05°-60°/s
* Support 60x preset, 4x cruise(each 15x preset), 1x A-B swing

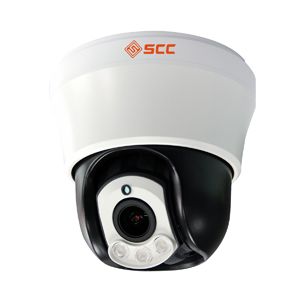

SCC Q5-AH10H62(X) 1.3MP Mini HD Speed Dome
