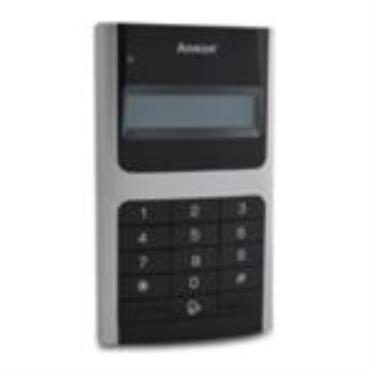

Anson network stand alone unit series (ASI series) are important part of 89 controller series. ASI is very popular in telecom base station, auto-bank, home, intelligent residential, office and so on. Anson adopts low power consumption and environmental protection design. The products have been used in more than 40 countries in the world

Besides all access controller functions, with a built-in reader, ASI is convenient to operate and easy to install. Moreover, the design of the device is patented

ASI can control one-door one-way in/out and can connect with PC by RS 232 or 485 bus. The software supports 10pcs 485 bus, and the maximum distance is 1200m. ASI can work with any 89 controller series. ASI can also work independently without PC

Parameters:

Reading mode: EM card or EM compatible card

LCD display: 2-line Chinese/English Interface

Reading distance: 5 to 5cm

Sensing time: <0.1s

Card capacity: 3,500 pieces

Off-line record: 20,000 pieces

Communication mode: 232/485, TCP/IP(with converter)

Networking distance: 15m for 232 mode, 1200m for 485/100m for direct TCP/IP connection no limitation for network

Transmission rate: 4,800, 9,600bps

Door-open mode: password, card insertion, card insertion plus password

Working voltage: 9 to 15V DC

Unlock current: ≤1,000mA

Static current: ≤60mA

Working current: -10 to 55 degrees Celsius

Working humidity: 0 to 90%

Product size: 150 x 88 x 25mm

Color: gray

Payment Details:

Payment Terms:

FOB (Shenzhen, China)

Minimum Order:

1 to 99 Pieces

Delivery Details:

FOB Port:

Shenzhen

FOB Price Range:

US$ 1 - US$ 500

Lead Time:

7 - 15 days
