Serve more as a security management platform than a mere access controller

M series can work with alarm, fire control and CCTV devices

The series also work with Safesmart to provide snapshot, video monitoring, attendance, on-line patrol function and so on

With the principle of environment-friendly in mind, Anson adopts lead-free solder, low power consumption EMC/EMI, and recyclable package, which makes Anson products in line with world-wide environment protection standard and hence can be applied all over the world

Parameters:

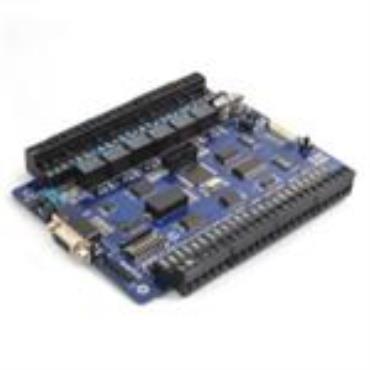

Product name: one-door/two-door controller

Control mode: one-door two-way or two-door one-way

Processor: ATMEGA64

Controller address: 0-128

Reader interface: Wiegand 26/34, self-defined Wiegand interface

Reader connectible x 2

Card capacity: 20,000 pieces

Event record: 50,000 pieces

Alarm record: 20,000 pieces

Exit button connectible x 2

Output electric lock: 2 groups

Input port: 2 reader + 8 input interface

Output port: 6 + extension board

Extension board: support (connect with a 4 group extension board)

Communication: Interface, RS 232, 485

Transmission rate: 9,600/19,200bps

Network distance: 1,200m

Working voltage: 9 to 15V DC

Working temperature: -10 to +55 degrees Celsius

Working humidity: 10 to 90%

Anti-static interference: ≥15kV

Data save mode: flash, power-down save 20 years

Product size: 160 x 130 x 15mm
