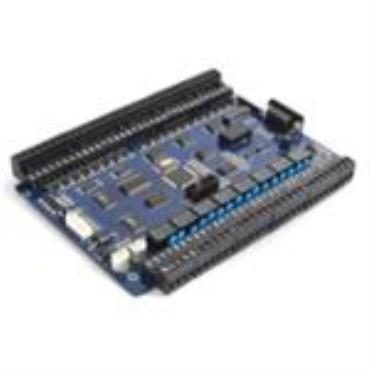

M-access controller series is a new generation products on which Anson spent two years to develop. Anson tries to reach a prima balance among "cost control" "function suitability" and "stability". In line with the product philosophy of "Live Safely and Conveniently", by adopting a powerful processor, M series serve more as a security management platform than a mere access controller M series can work with alarm, fire control and CCTV devices. The series also work with Safesmart to provide snapshot, video monitoring, attendance, on-line patrol function

With the principle of Eco-friendly in mind, Anson adopts lead-free solder, low power consumption EMC/EMI, and recyclable package, which makes Anson products in line with world-wide environment protection standard and hence can be applied all over the world.

Parameters:

Product name：two-door/four- door controller

Control mode：two-door, two-way or four-door, one-way

Processor：ATMEGA64

Controller Address：0-128

Reader Interface：Wiegand 26/34, self-defined wiegand Interface

Reader connectable： 4pcs

Card capacity： 20,000pcs

Event record： 50,000pcs

Alarm record： 20,000pcs

Exit button connectable：4pcs

Output electric lock：4 groups

Input port： 4 reader + 12 input interface

Output port： 8 + extension board

Extension board： support (connect with a 4 group extension board)

Communication Interface： RS 232, 485

Transmission rate： 9,600/19,200bps

Network distance： 1,200m

Working voltage： 9 to 15V DC

Working temperature： -10- +55℃

Working humidity： 10 to 90%

Anti-static interference： ≥15kV

Data save mode： FLASH, power-down save 20 years

Product size： 180 x 140 x 15mm

Payment Details:

Payment Terms:

FOB (Shenzhen, China)

Minimum Order:

1 to 99 Pieces

Delivery Details:

FOB Port:

Shenzhen

FOB Price Range:

US$ 1 - US$ 500

Lead Time:

7 - 15 days
