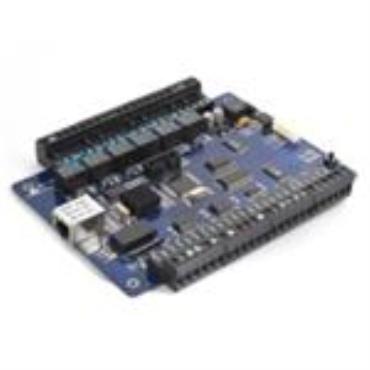

M access controller series is a new generation products on which Anson spent two years to develop

Anson tries to reach a primal balance among cost control function suitability and stability

In line with the product philosophy of live safely and conveniently, by adopting a powerful processor, M series serve more as a security management platform than a mere access controller M series can work with alarm, fire control and CCTV devices

The series also work with Safesmart to provide snapshot, video monitoring, attendance, on-line patrol function and more

With the principle of environment-friendly in mind, Anson adopts lead-free solder, low power consumption EMC/EMI, and recyclable package, which makes Anson products in line with world-wide environment protection standard and hence can be applied all over the world

Parameters:

Processor: ATMEGA64

Controller address: 0 to 128

Reader interface: Wiegand 26/34, self-defined Wiegand interface

Reader connectible: 2pcs

Card capacity: 20,000pcs

Event record: 50,000pcs

Alarm record: 20,000pcs

Exit button connectible: 2pcs

Output electric lock: 2 groups

Input port: 2 reader/8 input interface

Output port: 6/extension board

Extension board: supports (connect with 4 group extension board)

Communication interface: TCP/IP

Transmission rate: 10/100Mbps self-adapting

Network distance: one bus, 100m, connect with hub to prolong

Working voltage: 9 to 15V DC

Working temperature: -10 to +55°C

Working humidity: 10 to 90%

Anti-static interference: ≥15kV

Data save mode: flash, power-down save 20 years

Product size: 160 x 130 x 15mm
