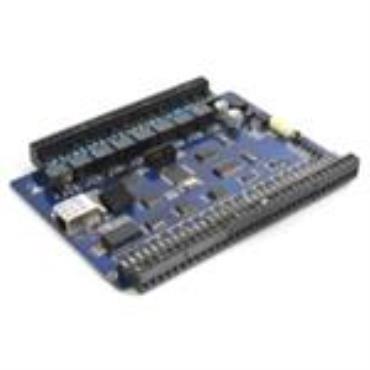

M access controller series is a new generation products on which Anson spent two years to develop. Anson tries to reach a prima balance among "cost control" "function suitability" and "stability". In line with the product philosophy of "live safely and conveniently", by adoping a powerful processor, M series serve more as a security management platform than a mere access controller M-series can work with alarm, fire control and CCTV devices. The series also work with Safesmart to provide snapshot, video monitoring, attendance, on-line patrol function

With the principle of Eco-friendly in mind, Anson adopts lead-free solder, low power consumption EMC/EMI, and recyclable package, which makes Anson products in line with world-wide environment protection standard and hence can be applied all over the world

Parameters

Product name： two/four- door controller

Control mode： two-door two-way or four-door one-way

Processor：ATMEGA64

Controller address：0 to 128

Reader Interface： Wiegand 26/34, self-defined Wiegand Interface

Reader connectible： 4pcs

Card capacity： 20,000pcs

Event record：50,000pcs

Alarm record： 20,000pcs

Exit button connectable：4pcs

Output electric lock：4 groups

Input port：4 reader + 12 input Interface

Output port：8 + extension board

Extension board：support (connect with a 4 group extension board)

Communication Interface：TCP/IP

Transmission rate：10/100Mbps self-adapting

Network distance： one bus less than 100m, connect with HUB to prolong

Working voltage： 9 to 15V DC

Working temperature： -10 to +55℃

Working humidity： 10 to 90%

Anti-static Interference： greater than or equal to 15KV

Data save mode：FLASH, power-down save 20 years

Product size：180 x 140 x 15mm

Payment Details:

Payment Terms:

FOB (Shenzhen, China)

Minimum Order:

1 to 99 Pieces

Delivery Details:

FOB Port:

Shenzhen

FOB Price Range:

US$ 1 - US$ 500

Lead Time:

7 - 15 days
