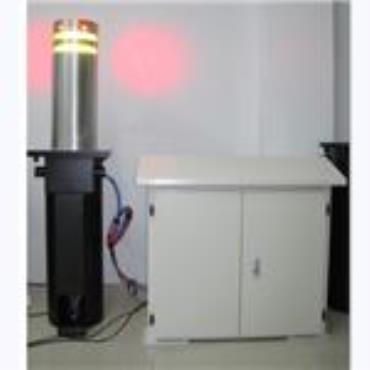

The pneumatic-automatic bollards can be stand-along control, especially in square; one PCC (Programmable Control Cabinet) can control 20 bollards together.It also can fit the different rise-off time require, the fastest time is 3 sec. it also supports direction changes during the running and avoids accidents, The pneumatic-automatic bollard does not need strong current construction, it has environmental power supply, reliable and safe.

1.Application:

Square, Public locations which need many bollards and have fast speed requirement.

2. Technical parameter:

Work Voltage: 24 V

Bollards body weight: 58KG

Goss weight: 100KG

Thickness: 6MM

Diameter: 219MM

Surface treatment: polishing drawing

Height: 600MM

Embedment depth: 900MM

Material: 304 stainless

Running model: pneumatic pressure

Rising and Falling time: 3-5 second

Reflective strip: glosses Crystal lattice reflective tape

Rise – off control: remote control (short range)/drive by wire(less than 100M)

Control cabinet size: 580*800*800MM

Bollard body size: 420 * 450 *900MM

Protection level: IP67
