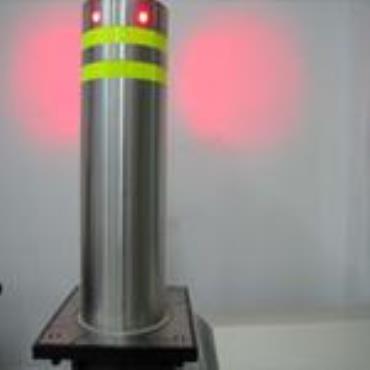

The Electric-Automatic bollard adopt the low voltage direct current machine with electronic brake as the power unit, it is safety and reliable with low consumption, quick lift speed, low noise, stable running, ext. Through the connection with the third part access control system( smart card, RFID, remote controller and program control ) . You can choose differ-ent auxiliary devices, such as loop, buzzer, and infrared prevention of collision. The rise/fall time is 3-5 seconds, can sat-isfy the needs of high frequency access control.

The recommended semi-automatic bollard maximum install spacing is 1.4, the depth of excavation have to depend on the different specifications cylinder. For special needs please contact local dealers.

1. Application:

Public carport, private yard and other high frequency access control.

2. Technical parameter:

Bollards body weight: 48K G

Thickness: 3MM

Diameter: 114MM

Surface treatment: polishing drawing

Height: 600MM

Embedment depth: 1200MM

Running model: DC machine

Reflective strip: glosses Crystal lattice reflective tape 30MM

Noise DB: <60DB

Installation size: 320*300*1200

Work environment: -20°+70°

Protection level: IP67
