Key Specifications

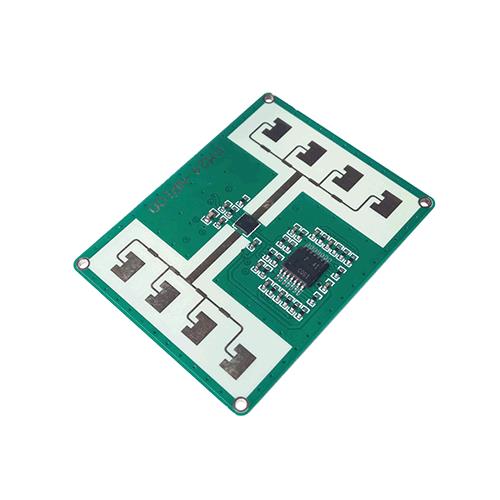

FMK24-A Series 24GHz Microwave ranging sensor

.Low cost, easy operation, no case.
.Suitable for being installed into your integrated products.
.Please use A series if appearance of your products already set.
.............................................................
Product parameters:


.Tuning Frequency:Min.24.000 GHz,Max.24.500 GHz
.TX power Eirp:Min. 0dBm, Typ. 6 dBm, Max.10 dBm
.Modulation type:FMCW
.Range-measurement range:Min.0.5m,Max.20m
.Range-measurement accuracy:Min.-0.1m,Max.+0.1m
.Range resolution:0.01m
.Antenna pattern HOR:78deg(-3db)
.Antenna pattern VER:23deg(-3db)
.Supply voltage:Min.4.5V,Typ.5V,Max.8V DC
.Power consumption:400mW
.Updating rate:10Hz
.Storage temperature:-40~+85℃
.Operating temperature:0~+70℃
.Weight:8g
.Dimensions:44*34*5mm
.............................................................

Function of FMK24-A series radar:
FMK24-A series including 6 models for different usage environment.

.FMK24-A5100 Range output:distance data of Max reflector,radar position as zero.
.FMK24-A5110 Range output:distance data of Max reflector,zero calibration as zero.
.FMK24-A5200 Range output:distance data of all the targets(with different distance),radar position as zero,from near to far.
.FMK24-A5210 Range output:distance data of all the targets(with different distance),calibration position as zero,from near to far.
.FMK24-A5300 Output level data,radar position as zero,in the selected scope,high level indicates existence of objects,low level indicates nonexistence of objects.
.FMK24-A5310 Output level data,calibration position as zero,in the selected scope,high level indicates existence of objects,low level indicates nonexistence of objects.
