EOD Firefight Robot Live Video Safety Wireless Monitor
Key Specifications
EOD Firefight Robot Live Video Safety Wireless Monitor
Summarize

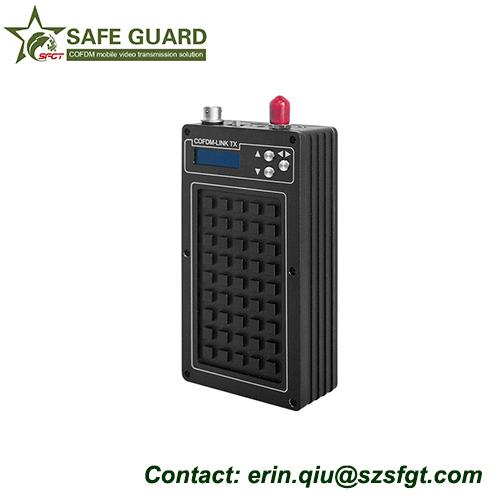

EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) is an exclusive design Mini H.264 HD wireless video transmitter with the 4th generation mobile communication core COFDM multi-carrier modulation technology,and high efficiency innovative H.264 compression code.
EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) has strong light, low power consumption of OLED display control panel, integrated digital modulation, audio and video compression in combo. remote control aviation cofdm transmitter SG-HD153 is suitable for mobile image, HD video, and it perform well in NLOS digital video transmission.
EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) is not only small& light, but also has a good performance.For example, it can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.
EOD Firefight Robot Live Video Safety Wireless Monitor(SG-HD153) is widely used in UAV aviation filming,military,covert investigation,image monitor and real-time wireless video transmission.
Feature
1080P/1080I full HD transmitter
small and light
safe and reliable
well permance :NLOS/LOS distance: 500m-1km/20km-50km
prompt transmission:Only 150ms delay for whole system working
New exclusive design product with COFDM
easy to carry and hide
HDMI+SDI+AV audio vdeo interface
Item name;EOD Firefight Robot Live Video Safety Wireless Monitor
Voltage;DC12V/960mA
Current;960mA
AV Input;CVBS/AV:3.5mm port,connect to standard resolution analog video signal;
HD-SDI/HDMI:supportHD1080P,720P,576,480; with audio demultiplexing function
Battery working time;1 hour
Frequency;300-4400MHz(option)
Bandwidth;2/2.5/4/8MHz(adjustable)
Output power 1.5Watt
Data encryption;AES128/256bits
Modulation;COFDM, 2k, qpsk
Constellation;QPSK,16QAM
Carrier;2K,8K
Flatness;Full band≤2dB,8MHz≤0.5dB
FEC;1/2 2/3 3/4 7/8
Guard Interval;1/32 1/16 1/8 1/4
Video compression;H.264
Image resolution;HD1080i/P(1920*1080), compatibility 1080I,720P,480P and standard resolution
Parameter control method;Set up the related parameters through the control panel
Input range (mV);800±80
RF Interface;SMA
Video formats;PAL/NTSC(self-adaption)
Working temperature;-20~+75 degree centigrade
Dimension;110*58*27mm
Weight;302g
