microwave video data ground control station for UAV communication
Key Specifications
Introduction of UAV ground station:

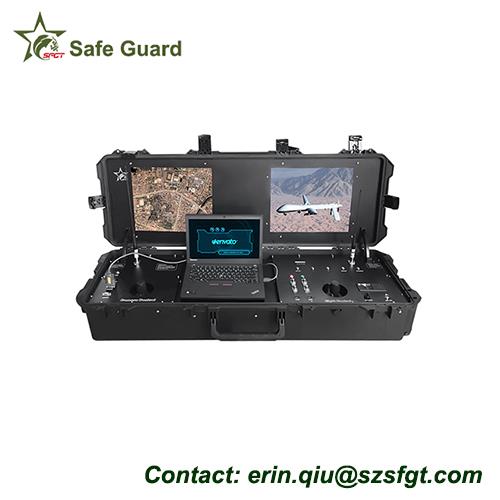

Safe Guard UAV ground station SG-SRT01 is a solution for controlling unmanned vehicles and payloads.
It can be configured to control unmanned aircraft vehicles (UAV), ground robots, bomb disposal robots, firefighting robots and other remote unmanned devices. SG-SRT01 is housed in a military grade rugged PELICAN case which makes it ideal for use in harsh environments.
Main features:
COFDM modulation
H.264 video compression
Full HD resolution,very sharp image
Dual aerial designed for better signal receive
Built in with DVR. Standard 17inch Samsung LCD screen
Internal with 120G SSD memory
Work well under fast moving signal receiving and support NLOS trasnsmission
If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.
Extra USB insert easy to copy the video.
With camera control and flight control joystick.
Video frequency ; Customizable in 300-4400MHz
Data frequency; Configured
RF bandwidth;2/2.5/4/8MHz(adjustable)
Memory;Embedded DVR, standard 120G SSD (Customizable)
LCD monitor;17inch Samsung LCD screen
RF Level Input;-105dBm~-20dBm
RF Interface; N(F)
Camera control data output;RS485
Flight control data output;RS232
Video output; Analog BNC, HDMI
USB output;For external memory use
Modulation ;COFDM
Power supply; AC220V / DC12V
Constellation; QPSK,16QAM,
FEC;1/2,2/3,3/4,5/6,7/8
Guard Interval; 1/32,1/16,1/8,1/4
Video format; 1 line PAL/NTSC video signal
Video Decoding;H.264
Resolution;1920*1080 @60i/59i
Audio Output; stereo left and right channel
Data encryption; AES 128bits
Operating environment;-30~70° C
Built in Battery;30000mA, support 48 hours continuously recording
Size;927*355*152mm
Weight;APRX. 23kg
