Key Specifications

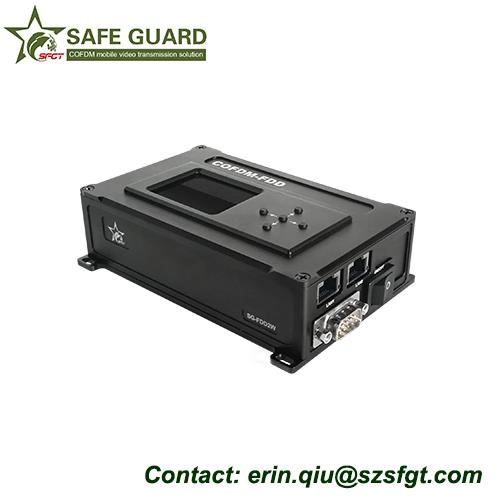

SG-FDD2W wireless 2 way communication IP transceiver is a new generation digital 2 way duplex transceiver integrated with COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation and FDD (Frequency-division duplexing) technology. It has two different uplink & downlink carrier frequencies for signal transmitting and receiving, so that have NLOS (non-line-of sight) diffraction and strong anti-interference ability. Also compatible with super-linear digital predistortion, super narrowband (1MHz), low-latency and high-sensitivity capacity, that makes it ideal for long distance IP video data transmission.
As it’s lightweight and small size, It is mainly used for military eod robot, fire fighting robot, public security system, emergency, system, police, military etc secured video data transmission.

Model; SG-FDD2W
Power supply; DC12V/1.5A
TX output frequency; 300-3300MHz selection, step in 1MHz
RX output frequency; 300-3300MHz selection, step in 1MHz
RF bandwidth; 1/2/4/8MHz
RF power output; 33dBm
Encryption/decryption mode; AES128 bits(user-defined password)
Modulation; COFDM 2K
Transfer rate; 2x30 Mbit/s uplink and downlink
RF connector; SMA type *2
Ethernet; Standard RJ45 port *2
Serial port; RS232 serial port
Baud rate; 115200bps maximum
LCD panel with keypad; Easy to set the related parameters
Dimension; 131*92*39mm
Weight; 527g
Military Band Wireless 2km Ethernet Video Data Transceiver
