Key Specifications

* Codec: H.264

* Camera Inputs: HD-SDI, 4 BNC Input (Supports PoC/CoC, DoubleReach func.)

* Monitor Outputs: HDMI

* Compression Format: H.264 High-Profile

* Operation OS: Linux Embedded

* Recording Frame Rate (HD Mode): 120fps@HD1080p

* Recording Frame Rate (D1 Mode): N/A

* Playback Frame Rate (HD Mode): 120fps@HD1080p

* Playback Frame Rate (D1 Mode): N/A

* Live View Frame (HD mode): 120fps@HD1080p

* Audio Format: ADPCM (32Kbps, 16KHz sampling), Bi-directional

* Bandwidth for Bits Rate: 800kbps ~ 12Mbps

* Video Stream: 3 streams

* Alarm I/O: 4 inputs / 2 outputs

* Interface: USB / eSATA

* Storage Capacity and Extend: Max.16TB(eSATA)

* Mobile Surveillance Support: WebEye - Mobile viewer App for iphone /Android phone

* Network Port: 1-Gigabit port

* Network Protocol: WESP, HTTP, UPnP, RADIUS, TCP/IP, UDP, ARP, ICMP, DHCP, PPPoE, SMTP, SNMP, SNTP, TLS

* OSD Function: Graphic User Interface for DVR menu setting Calendar/Time-line Search like PC S/W

* Optional: HDC400F-PD supports following functions.
- PoC (Power over Coax)
- CoC(Control over Coax)
- DoubleReach (Extends HD-SDI transmission distance)
- 8KV/500A Lightning Protect
- High performance CMS

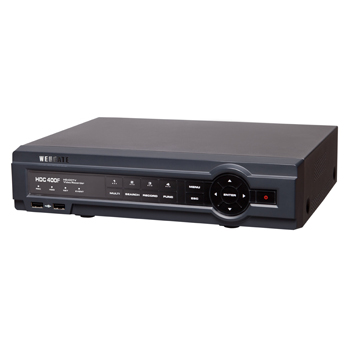

WEBGATE HDC400F-PD 4ch Full-Frame HD-SDI DVR
