Key Specifications

Overview



The SD9364-EHL is the latest professional speed dome camera from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150 M IR illuminators and a 30x optical zoom lens, the SD9364-EHL provides a superb low light image in the most challenging situations. The SD9364-EHL also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.



The SD9364-EHL is the first PTZ surveillance camera with IR Illumination to utilize H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80% compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, VAIR, WDR, and 30x optical zoom, the SD9364-EHL is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week. VIVOTEK further strengthened the camera performance with an IP67- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9364-EHL has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9364-EHL ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.



As with all VIVOTEK true day/night cameras, the SD9364-EHL features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is included by recognizing changes in ambient noise. The SD9364-EHL also includes a SD/SDHC/SDXC card slot and supports up to 60 fps in 1080P full HD. For the most demanding outdoor surveillance application, there is nothing that compares to the VIVOTEK SD9364-EHL.





Key Features

* Real-time H.265, H.264 and MJPEG Compression (Triple Codec)

* 1080p HD CMOS Sensor

* 60 fps @ 1080p Full HD

* 30x Zoom Lens, 150 M IR

* VAIR (Vari-Angle IR)

* Removable IR-cut Filter for Day & Night Function

* 360° Continuous Pan and 220° Tilt

* WDR Pro for Unparalleled Visibility in High Contrast Environments

* Weather-proof IP67-rated, Vandal-proof IK10 and NEMA 4X-rated Housing

* -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions

* Audio Detection for Instant Alerts

* Auto Tracking for Moving Objects

* Smart Stream II to Optimize Bandwidth Efficiency

* 3D Privacy Masks for Additional Protection

* Built-in SD/SDHC/SDXC Card Slot for On-board Storage

* Defog

* EIS

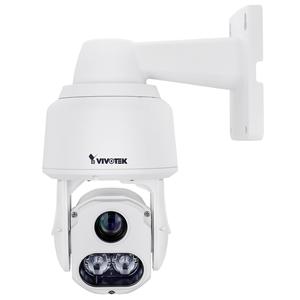

VIVOTEK SD9364-EHL H.265 IR speed dome camera
