Key Specifications

The appliance IPS 10000 combines the proven and extended VideoIP software SMAVIA Recording Server with a reliable and high-performance server hardware. Best matched components ensure high storage speed and thus allow the recording of up to 100 HD video channels in real-time. The integrated RAID 6 storage system already provides a high storage capacity and can be expanded by an external RAID 6 JBOD system. Thereby this appliance is the optimal recording system for large video installations in stadiums, shopping malls, casinos or convention centres.



Storage System

The IPS 10000 has eight easily accessible HDD bays on the front side. Equipped with eight of the optionally offered 6 TB server hard disk drives already a RAID 6 storage capacity of 36 TB can be achieved. In connection with the external RAID 6 system SMAVIA Enterprise JBOD, the capacity can be expanded by additional 60 TB.



SeMSy III Integration

The appliance is factory fitted with the license SeMSy Flat. Thus, it is optimally equipped for the integration into the storage system of a SeMSy III video management system. The appliance supports the complete SeMSy III functional range including the convenient evaluation of the recordings on a SeMSy III Workstation.



SMAVIA Viewing Client

The software SMAVIA Viewing Client allows for the independent and convenient evaluation of the recordings over the network. It can be run on workstations with Windows 7/8/10 operating systems and is included in the scope of delivery of the appliance with two access licenses.



DMVC Server

The integrated DMVC Server Software permits for the access with the mobile app Dallmeier Mobile Video Center, that is available for iOS or Android operating systems. The display of live images and playback of recordings follow a special procedure which is independent of the recording settings of the appliance.



Open Platform

The pre-installed software SMAVIA Recording Server is designed as an open platform. Together with the according licenses, 3rd-party IP cameras can be recorded with motion detection and configured over the ONVIF protocol.

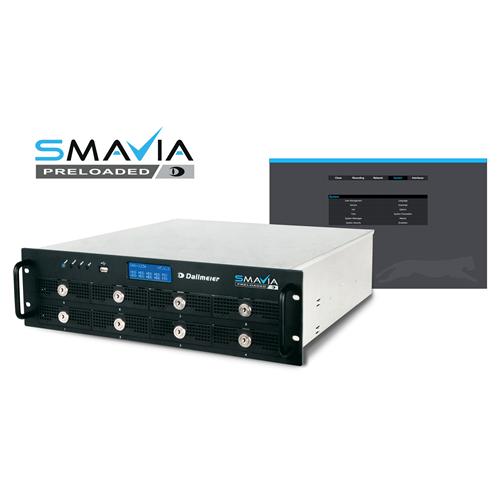

Dallmeier IPS 10000 SMAVIA Recorder
