Key Specifications

The DF5200HD-IR-ANPR is a special camera with integrated IR illumination. The images provided by the camera are optimized for the automatic recognition of vehicle number plates on a  SEDOR ANPR Server appliance.

Equipped with the most advanced sensor and encoder technology, a powerful IR illumination and a special optical filter, the camera provides high-resolution and monochrome video footage. This is the ideal base for a precise and fast 24-hour number plate recognition
, regardless of environmental conditions or changing lighting at day and night.

Infrared range
The camera features an outstanding infrared sensitivity and permanently supplies infrared images with excellent contrast. The restriction on the infrared range allows for the elimination of disturbing daylight and ambient conditions. In addition, the intense IR reflection of modern number plates is optimally utilized
. This enables recordings with brilliant clarity and highest detail resolution, ideal for a precise number plate recognition in a 24/7 operation.

Integrated IR illumination
The outstanding infrared sensitivity of the camera is supported by the integrated homogeneous IR illumination. It is based on semi-covert 850 nm high power LEDs
and permits an illumination range of up to 18 m.

ANPR presets
The camera is equipped with special presets in order to provide optimum recordings for the number plate recognition with SEDOR ANPR Server. This allows the quick and easy adjustment of the settings
to different capture ranges. Individual adjustments of the camera settings are usually not required.

EdgeStorage
The camera is equipped with a RAM memory that is used by the EdgeStorage function for storing the video stream in case of a network failure. When the network is restored, the SmartBackfill function ensures a fast transmission to the SMAVIA recording system
. This stores the video stream with high speed and then continues the recording of the live stream seamlessly.


Features



* Independent of daylight and ambient conditions

* Capture at day and night

* Variants with capture ranges of up to 8 m, 12 m and 18 m

* Optimum presets for SEDOR ANPR Server

* ONVIF interface for the integration in 3rd party systems

* Privacy zone masking and digital flip function

* 3D Digital Noise Reduction (3D DNR)

* IP66 weather proof enclosure

* Outdoor wall mount bracket (with internal cable routing)

* Power over Ethernet (PoE Class 0, IEEE 802.3af)



Areas of application



* Capture of number plates in stationary traffic

* Capture of number plates in flowing traffic at speeds of up to 60 km/h

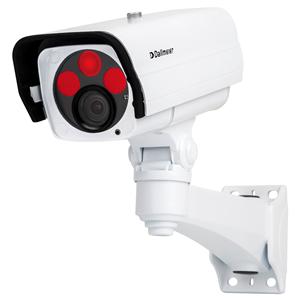

Dallmeier DF5200HD-IR-ANPR Camera
