Key Specifications
Description

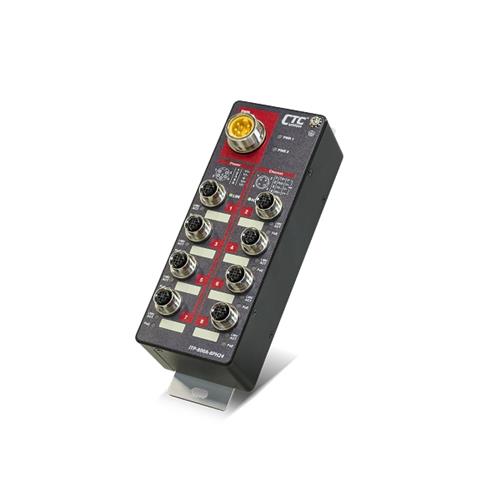

The ITP-800A-8PH24 is an unmanaged, Fast Ethernet, PoE switch, that provides 8 x 10/100Base-TX PoE+ Ethernet ports. This Ethernet switch is designed for industrial applications in harsh environments with Ethernet ports that utilize M12 connectors to ensure watertight, robust connections and guarantee reliable operation against environmental disturbances such as vibration and shock. The ITP-800A-8PH24 series Ethernet switches are compliant with EN50155, covering operating temperature, power input voltage, surge, ESD, vibration, and shock, thus making these switches suitable for industrial applications in vehicle, rolling stock and factory automation.


Features

▪ Use M12/M23 connector anti vibration and shock for vehicle, rolling stock, and railway applications
▪ 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency (97~98%) to boost PoE output voltage to 50VDC
▪ Regulated PoE output voltage (50VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100 meters
▪ Wide operating temperature -40~75°C (ITP-800A-8PHE24)
▪ CE, FCC, EN51055, EN50121-4 and EN45545-2 for railway certified
▪ Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
EN50155 Switch ITP-800A-8PH24
