Key Specifications

Key Features:

Your best choice of DIY home security. The internal speaker is for on-site warning ; the internal PIR detector is to detect intruder alarm. Protect your house no matter where you are !

• H.264, and MJPEG encoder
• 1280x1024 / 1280*720 resolution, max 30fps
• One pc IR LED and ICR for day and night surveillance
• Built in speaker and PIR detector
• Event trigger action: Send to NAS, send to FTP, send to Email, Voice alert, save to mSD card, notify to HTTP/TCP servers
• Plug and play available (AH21K7M and AH21K8M)
• Panotube smart phone apps

Specifications:

Camera module
Model NumberAH21K8M (PnP)
Effective Pixels1280 x 1024 pixels
Lensf: 2.6mm
IR LEDHigh-light IR LED* 1pc
Support auto/ manual/ schedule mode for IR LED on/off
Mechanical ICRYes
Video EncoderH264
Video Mode1.3M Mode (4:3) and 720p Mode (16:9)
Video ProfileDual stream simultaneously
Frame RateUp to 30fps (NTSC) / 25fps (PAL)
Image SettingAE, AWB
3D Noise reduction
Digital WDR
Lens distortion correction (LDC)
Defog
Anti-false color
Exposure Value, Color Level, Brightness, Sharpness, Contrast
Mirror/Flip
Privacy Masks
Multi-language text, time and image overlay on OSD
StreamingStreaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)
ROI2 editable windows for region on interest
AOIHigher quality in area of Interest
Audio
Audio EncoderAAC
Audio StreamingOne-way or two-way
Audio Input / OutBuilt-in MIC
Built-in speaker
Network
Ethernet10/100M auto negotiation
WirelessNA802.11n
WPSNAV
Supported ProtocolsIPv6, IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, QoS
DDNSDIPS
NAT TransversalUPnP NAT transversal
Plug and PlayAH21K7MAH21K8M
SecurityPassword protection, IP address filtering,
HTTPS encrypted data transmission, user access log
Users8 simultaneous unicast users
System Integration
SDKOpen API for software integration
ONVIF (AH21K1M , AH21K2M )
Alarm TriggersPIR detector for human (far-infrared)
Motion detection
Camera tampering
Audio Detection
Motion DetectionVideo motion detection up to 10 windows
Alarm EventsVideo file upload via FTP server
Video file upload via email server
Video file upload via Samba to NAS
Notification to HTTP, and TCP server
Audio alerting output
Save video file to local mSD card
Push notify to smart phone apps
Video BufferPre- and post- alarm buffering
General
Power Supply12V DC external power adapter
ConnectorsRJ-45 10BaseT/100BaseTX
12V DC power jack
mSD card
Factory default reset / WPS button
Indication LEDGreen and orange LEDs
Operating Temperature0°C ~ 40°C
Operating Humidity20% ~ 80% (non-condensing)
Viewing System
OSWindows XP, Vista, Win7, Win8
BrowserIE 8.0 or latter / Firefox / Safari / Chrome
Video PlayerVLC, Quick Time, Real Player, Core Player, iPhone & Android App
Software
Search & InstallationIPWizardⅡ
Smart Phone AppsiVanguard for iOS
SecuAngel for Android OS
PanoTube for PnP application
Bundled NVR ProgramSecuGuard 6.x:
64ch. multi-channel supports Tri-decoder
16ch. video playback (synchronization)
Smart & re-sizeable digital zoom.
Snapshot and edit
Motion, DI, Scheduler recording
Fast rewind and forward (MPEG4, H.264, MJPEG rewind)
32x24 motion detection grids
Smart search (by time, by motion)
E-MAP
Event schedule setting
Remote service
Camera tampering

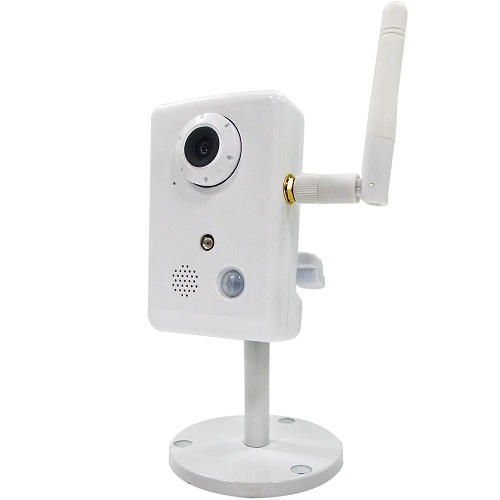

A-MTK AH21K8M PnP PIR IR IP Cam (WLAN)
