Model Number |

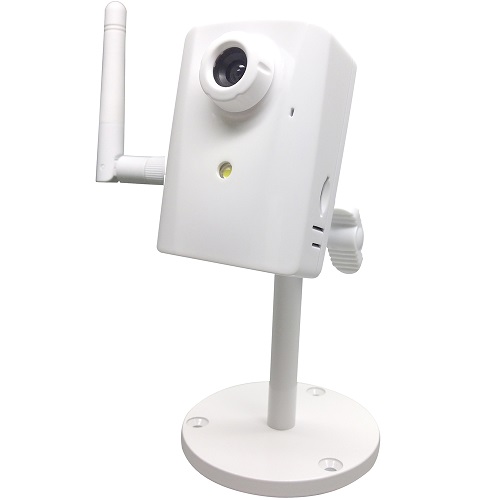

AH2138M (PnP) |
Effective Pixels |
1280 x 1024 pixels |
Lens |
f: 3.6mm |
equipment equipment Low Lux Illuminator |
0.5lux |
Lighting LEDs type |
IR LED * 1pc Support auto/ manual/ schedule mode for IR LED on/off |
IR filter |
850nm IR filter |
|
Video Encoder |
AH2138M (PnP) / AH2137M (PnP) |
Video Mode |
1.3M Mode (4:3) or 720p Mode (16:9) |
Frame Rate |
Up to 30fps (NTSC) / 25fps (PAL) |
Image Setting |
AE, AWB 3D Noise reduction Digital WDR Exposure Value, Color Level, Brightness, Sharpness, Contrast De-fog Mirror/Flip Lens Distortion Correction (LDC) Auto-false color Privacy Masks Multi-language text, time and image overlay on OSD |
Streaming |
Dual streaming simultaneously Streaming over UDP, TCP, HTTP, or HTTPS換M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (H.264) |
ROI |
2 windows, free scale region of interest |
AOI |
Higher quality in area of interest |
|
Audio Encoder |
AH2138M (PnP) / AH2137M (PnP) |
Audio Streaming |
One-way or two-way |
Audio Input / Out |
Built-in MIC Line out |
|
Ethernet |
10/100M auto negotiation |
Wireless |
802.11n WLAN |
WPS |
V |
Plug and play |
AH2138M |
AH2137M |
Supported Protocols |
IPv6, IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, QoS |
NAT Transversal |
UPnP NAT transversal |
Security |
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
Users |
8 simultaneous unicast users |
|
SDK |
Open API for software integration ONVIF 1.0~2.3 ( AH2135M and AH2132M ) |
Alarm Triggers |
Camera tampering Motion detection Audio Detection |
Motion Detection |
Up to 10 windows |
Alarm Events |
Video file upload via FTP Video file upload via email Video file upload via Samba to NAS換Notification to HTTP, and TCP server Audio alerting output (speaker) Video file saved to local mSD card Push notify to A-MTK smart phone APP |
Video Buffer |
Pre- and post- alarm buffering |
|
Power Supply |
12V DC external power adapter |
Connectors |
RJ-45 10BaseT/100BaseTX 12V DC power jack Audio output mSD card Factory default reset button / WPS button |
Indication LED |
Green and orange LEDs |
Operating Temperature |
0°C ~ 40°C |
Operating Humidity |
20% ~ 80% (non-condensing) |
|
OS |
Windows XP, Vista, Win7, Win8 |
Browser |
IE 8.0 or latter / Firefox / Safari / Chrome |
Video Player |
VLC, Quick Time, Real Player, Core Player, iPhone & Android App |
|
Search & Installation |
IP WizardⅡ |
Smart Phone Apps |
iVanguard for iOS SecuAngel for Android OS PanoTube for PnP application |
Bundled NVR Program |
SecuGuard 6.x: 64ch. multi-channel supports Tri-decoder 16ch. video playback (synchronization) Smart & re-sizeable digital zoom. Snapshot and edit Motion, DI, Scheduler recording Fast rewind and forward (MPEG4, H.264, MJPEG rewind) 32x24 motion detection grids Smart search (by time, by motion) E-MAP Event schedule setting Remote service Camera tampering Fisheye de-warping |
