Module Name |

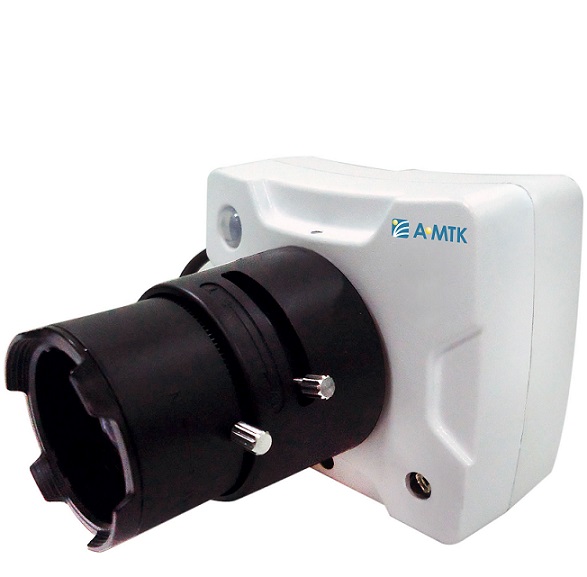

AH2653D |
Effective Pixels |
1920 x 1080 pixels |
Lens |
Support C, CS mount lens |
Iris |
Support fixed Iris or DC drive Iris |
Mechanical ICR |
Yes |
|
Video Encoder |
H.264 and MJPEG simultaneously |
H.264 Encoder |
H.264 main-profile, baseline |
Video Profile |
5 streams simultaneously |
Frame Rate |
Up to 30fps(NTSC)/ 25fps(PAL) in all resolutions |
Image Setting |
AE, AWB
3D Noise reduction
Digital WDR
Color, brightness, sharpness, contrast, Hue
90o Rotation , Mirror, Flip
De-fog
Anti-False Color
Privacy Masks
Pixel count |
Lens Distortion Correction (LDC) |
Yes |
Image Overlay |
Text, time and date overlay
Multi-language text overlay
Image overlay on video |
Streaming |
Simultaneously multi-streams
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264) |
Rate Control |
VBR, CBR, EVBR, GOP |
AOI |
Yes |
ROI |
Yes |
|
Audio Encoder |
RTSP: G.711 64kbps, G.726 32kbps, AAC (option, by request) |
Audio Streaming |
One-way or two-way |
Microphone |
Built-in and external microphone |
Audio Output |
Adjustable audio output gain |
|
Ethernet |
10/100M auto negotiation |
Supported Protocols |
IPv6, IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, ONVIF, SNMP, QoS |
NAT Transversal |
UPnP NAT transversal |
Security |
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
Users |
20 simultaneous unicast users |
|
SDK |
Open API for software integration
ONVIF |
Alarm Triggers |
Video motion detection
Audio detection
Camera tampering
Sensor input (DI) |
Motion Detection |
Video motion detection up to 10 windows |
Alarm Events |
File upload via FTP or email
File upload via Samba to NAS
Notification via email, HTTP, and TCP
Push notify to Smart phone apps (AMTK)
Audio alert to external speaker
Alarm output (DO) |
Video Buffer |
Pre- and post- alarm buffering |
|
Power Supply |
Built in Power over Ethernet
802.3af Class 3 |
Connectors |
RJ-45 10BaseT/100BaseTX |
Indication LED |
Green and orange LEDs |
Operating Temperature |
0°C ~ 40°C |
Operating Humidity |
20% ~ 80% (non-condensing) |
|
OS |
Windows XP, Vista, Win7, Win8 |
Browser |
IE 9.0 or latter / Firefox / Safari / Chrome |
Cell Phone |
iPhone, Android (A-MTK) |
Video Player |
VLC, Quick Time, Real Player, Core Player, iPhone & Android App |
|
Search & Installation |
IPWizardⅡ |
Bundled NVR Program |
* SecuGuard 64CH:
* 64ch. multi-channel supports Tri-decoder
* 16ch. video playback (synchronization)
* Smart & re-sizeable digital zoom.
* Snapshot and edit
* Motion, DI, Scheduler recording
* Fast rewind and forward (MPEG4, H.264, MJPEG rewind)
* 32x24 motion detection grids
* Smart search (by time, by motion)
* E-MAP
* Event schedule setting
* Remote service
* Camera tampering |
