Key Specifications

Product ModelVP-IPC-IRQ3200WVCPVP-IPC-IRQ3200WMCP
Sensor1/2.8" 2.0Mega progressive scan CMOS
Min.illuminationColour:0.01Lux/F1.2; 0Lux/F1.2(IR ON)
Lens2.8-12mm Vari-focusing lens2.8-12mm Motorized lens
IR distance6pc IR Array, 50 M
Electronic shutterAuto(1/25s-1/10000s Adjustable)
Day/NightAuto/Color / B&W (IR_CUT)
Noise Reduction2D/3D Digital Noise Reduction
Anti-fogSupport
WDRDigital/Real WDR(120dB)
Video EncodingH.264, H.265
Record ResolutionMain Stream: 1920*1080@25fps/30fps; Sub Stream: 704*576@25fps;

Third Stream:1280*720@25fps

Video Bitrate Range32Kbps~8Mbps
Audio1 Audio Input ; 1 Audio Output
Alarm1 Alarm input ; 1 Alarm output
StorageSupport Micro SD/TF Card/SDHC/SDXC Card Max 128G
RS485Support
Reset ButtonBuilt-in reset button
CVBS outputSupport
Network InterfaceRJ45 10M/100M adaptive Ethernet interface
Motion DetectionMultiple detection zones, variable sensitivity levels
ROISupport
Corridor ModeSupport
AlarmSupport network anomaly,mask alarm and etc.
Intelligent FunctionSupport line-crossing detection
Mobile APP.IOS, Andriod
Network FunctionTCP/IP;UDP;HTTP;IGMP ;ICMP;DHCP;RTP/RTSP;DNS;

DDNS;FTP;NTP;PPPOE;UPNP;SMTP

ProtocolSupport ONVIF and CGI protocol
Protection GradeIP66
PoESupport
PowerDC 12V
Operation Temperature-10℃ ~ +60℃
Operation humidity10%-90%
Power supply10W MAX
Dimensions98×96×265(mm)
Weight1200g

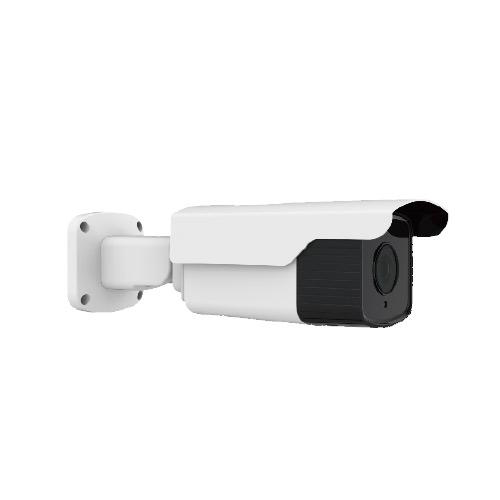

 2.0MP WDR Varifocal / Motorized HD IR Bullet IP CAMERA
