Key Specifications

YFS-621 is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.


* Lock Size: 230Lx40Wx30H(mm)
* lock tongue structure: 304 Stainless Steel
* Holding Force: 1000kg
* Voltage: DC12V or DC24V
* Current: 12V/220mA or 240V/110mA
* Signal Output: Lock Status OutputNO/NC/COM
* special design: applies to all brands of fire push rod lock
* Suitable For: supporting rod lock fire door
* Surface Temperature: Within +20℃
* Suitable Temperature: -10~+55℃(14-131F)
* Operating Humidity: 0~90%(non-condensing)
* Face plate Housing: High temperature paint
* Lock tongue: Surface by coating nickel
* The door open: 90 degrees
* Weight: 0.75kg

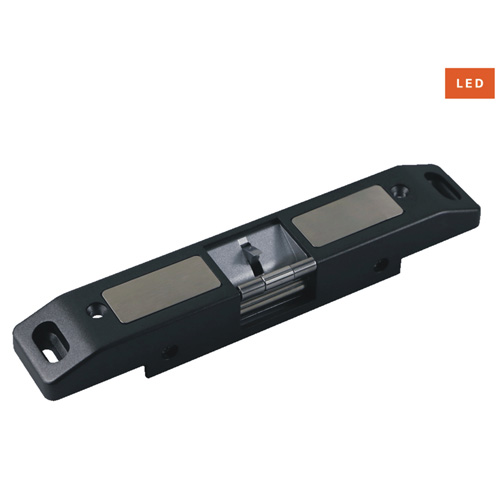

Yli YS-621-S Electric Strike for Push Bar
