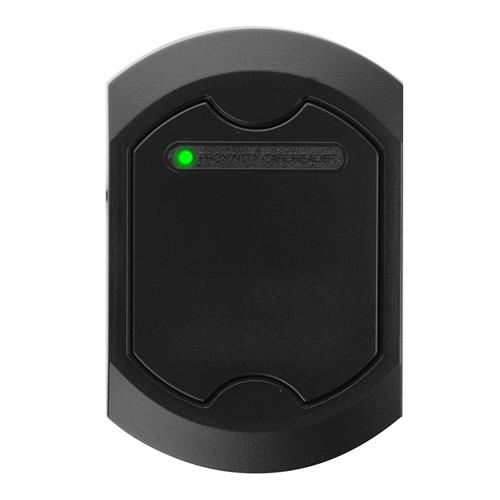

FR260 Controller/Card Reader
Key Specifications
Product Description
The FR260 has built-in RF card recognition function and controller function, and it can be connected to PC (GuardEyes installed) via TCP / IP network communication for access control and simple time and attendance management. If needed, you can install and use it alone without an Internet connection.
To install the FR260 as an access control system, additionally operating programs, locking devices, and access buttons are required.
Main Specification
> Recognition distance(Mifare/EM card) : 4cm / 10cm (ISO card standard)
> Card registration / Event storage : Up to 10,000 / 10,000
> Door open retention time : 5 seconds (fixed, network adjustable)
> Select door lock type : Select Power Fail Safe and Power Fail Secure
> Exit button : 1 Exit button input (low operation)
> Output Type : EM card: 26 bit (Mifare card: 32bit) Wiegand
> LED / buzzer : 2 Color LED (red, green) / Built-in Piezo buzzer
> Power (except electric lock) : DC 12V, current up to 150mA(door lock excluded)
> Operating power : -20℃ ~ +65℃, 0~90% Absolute humidity
> Color / Size (WxHxD) / Weight : Black / 79 x 121 x 18 mm / 100 g
