ISTCONTROL Co., Ltd

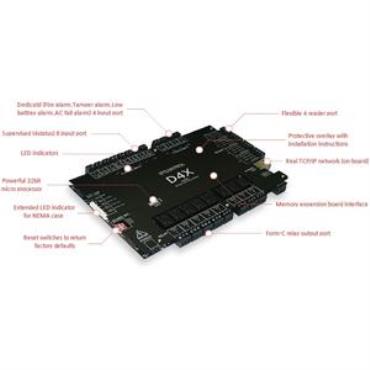

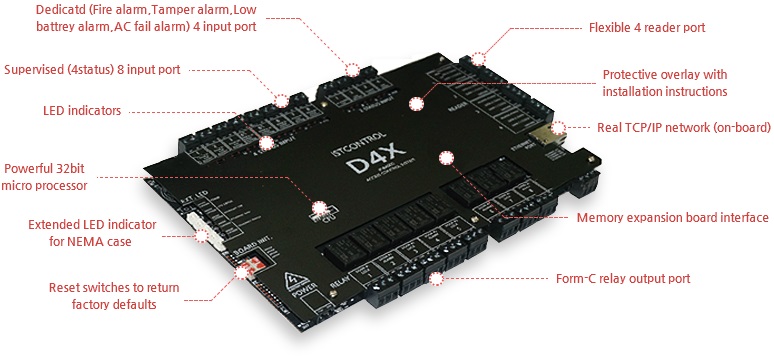

D4X 4 Door controller
● On-board Ethernet communication
● Embedded web interface support through web browser
● Adapted multiple packet Tx/Rx protocol for fast two-way data transmission
● Level option for each control for flexible and effective control
● Priority event procession setting
● Four state supervised inputs (Open loop/Shorted loop/ Grounded loop/Line fault)
● Extra input ports for power fail, low battery tamper and fire
● Self-configuring of readers with standard wiegand format such as 26/34/37/40 bit
● User –defined reader format supported
● Global, Time and soft anti-pass back supported
● Global input/output linkage function
● Global and S/W arm/disarm command
● LED included RJ45 connector of its network operation status
● Auto converting function of reverse DC input
● LED display of its operation status
● Electric noise protection circuit
● Pluggable terminal block
● Certified KC, CE, FCC
