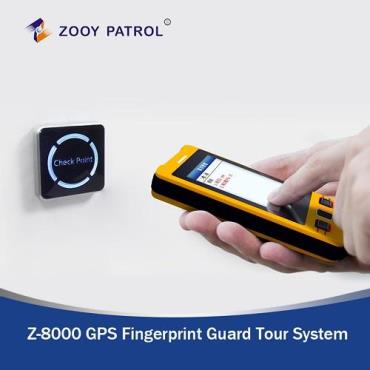

Intelligent Touch-screen Guard Tour device is consists of RFID Data collector , GPRS real time transmission technology ,GPS positioning system, RFID check point recognition and Web based patrol management software. Contain Fingerprint verification, Camera , Item definition for each check point, real time transmission , GPS location monitoring function, which strengthened the efficiency and security of patrol management greatly.

1 LED working indicator

2 Touch screen and menu icon

3 Power/Exit button

4 Fingerprint area

5 “OK” button. Can also open/close torch at main interface

6 Camera/flashlight

7 RFID area

8 Label area

9 USB communication port

Technical data

LCD screen:TFT3.5inch capacitive touch screen

Workable cards:125kHz EM ID card

Working indication:Vibration +LED+LCD

Fingerprint capacity:20 pcs and 150 pcs for option

Patrol data capacity:10,000 logs

Camera:Flashlight+2.0 Mega-pixel camera

Image capacity:TF card,8G

Impact record capacity:32,000 logs

Locating method:GPS satellite

Communication:GPRS/magnetic type pogo pin USB contacts, free USB driver ,high speed communication

Battery:3000mA built-in rechargeable lithium battery Power consumption:100~120mA

IP grade:IP65

Item no. :for each check point 30pcs
