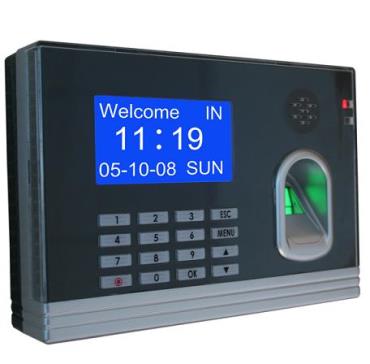

T22 - professional time attendance system with simple access control

RS232, TCP/IP, embedded alarm clock, 3,000 Fingerprint templates

New version of North Korean algorithms with dependability and accuracy, identification speed obviously improved, process 3,000 fingerprints, no matter good or poor, within 0. 7 second.

Built in embedded standalone module (ZKS208) with high performance SAMSUNG 32 bit X-scale CPU, big capacity FLASH and CMOS chips, it is easy to integrate with various systems.

. Alarm clock function to give the correct time

. Be equipped with system of calendar which is on an equal footing with PC.

. Sensor with quality image, accepts dry, wet fingers.

. Support 360-degree rotation identification, easy to use.

. Adjust image distortion, assure fingerprint matching consistency. . Accept ODM or OEM, providing system local voice, menu language, software analysis, casing-making.

. It is a good option for enterprise / factory / office / bank use.

Technical Parameters:

User Capacity: 3000

Transaction Storage: 80,000

Period of data: Keep 3 years when no current

Collection rate: Port rate (9600BPS, 19200BPS, 38400BPS)

Verification mode: 1:1, 1: N

FAR: <0. 0001%

FRR: <0. 01%

Response time: <0. 7 second

Alarm clock: Embedded alarm clock

The capacity of connecting net: 255 units (TCP/IP), 31 units (RS485 mode)

Communication: RS232, TCP/IP

Show: ID number, Time, Name

Language: English, French, Spanish, Czech, Indonesian, Portuguese, Turkish and so on

Working mode: Time & attendance, standalone, can work persistently

Time & Attendance mode: Fingerprint, password, card, fingerprint + password, fingerprint + card

Save function: Turn off device automatically for saving

Size: 178*55*128mm

Power supply: DC5V, 1A (AC 100V to 240 V, 50 to 60 Hz)

Warranty of period: 24 months

Temperature and humidity: 0 - 45, 20%-80%

Options: Proximity or Mifare or HID card reader, backup battery

Application: Factory/office/bank/hotel etc
