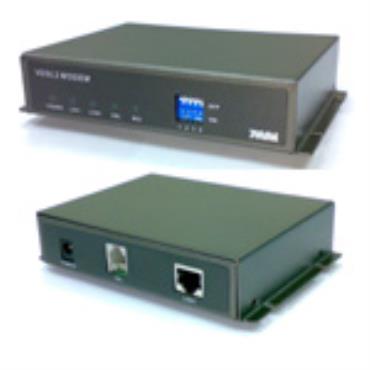

V102-PD is a VDSL LAN Extender providing a broadband transmission up to 100/60Mbps for downstream/upstream over single pair copper line or coaxial cable for point-to-point Ethernet connectivity.  With 100/60Mbps data rate, V102 Series supports transmission distance up to 300 meters and 30/10 Mbps for 1km long range connection.  Users may also select a fixed data rate or a fixed SNR margin for different copper line ranging. With Power over Ethernet (PoE) feature, V102-PD takes power supply over Ethernet cable from PoE Ethernet Switch and may work without external power adapter.

With plug and play features and minimum installation time, a pair of V102 Series offers a cost effective solution for bandwidth-hungry applications such as video streaming and FTTB over single twisted pair telephone line.

Features:

l          ITU-T G.993.1, G.993.2 VDSL/VDSL2 and SG15Q4 DMT Compliance

l          100/60Mbps DownSream/UpStream for distance up to 300 meters

l          Trellis Coding support up to 1024 Discrete Multi-Tone (DMT) bin

l          Supports DSL connection up to 2000 meter

l          Selectable Fast and Interleaved modes

l          Selectable fixed data rate and fixed SNR margin

l          Auto MDIX for 10/100 BaseT Ethernet LAN Ports

l          IEEE 802.3af PoE Compliant

l          4 Dip Switches for Master/Slave Configurations

l          Low-Latency for Video/Voice/Data applications

Technical Specifications:

VDSL Transmission:

l ITU-T G.993.1/2, SG15Q4 DMT Compliance

l Trellis Code with 1024 DMT bins

l Max Data Rate: 100/60 Mbps

l RJ-11 Connector x 1

LAN Interface:

l Auto-Detection for 10/100 BaseT and Half/Full duplex

l High performance bridge for Ethernet extension

l Fully compatible with IEEE802.3/IEEE802.3u

l Automatic MDIX Function

l IEEE 802.3af PoE Compliant

l RJ-45 Connector x 1

PoE (PD):

l IEEE 802.3af Compliant

LED Indicators:

l POWER:  Power is ON

           DSL:          VDSL Loop Connection Status

l LAN:         Data Activity of LAN Port

            M/S:         Master/Slave Selection

Physical Dimension:

Desktop: 120 x 90 x 28 (mm)

Power:

5VDC 2A (optional)

Operating Environment:

l Humidity: 5% to 95% non-condensing

l Temperature: 0 ~ 50 degree C

Regulatory Compliance:

l FCC Rules Part 15

l CE
