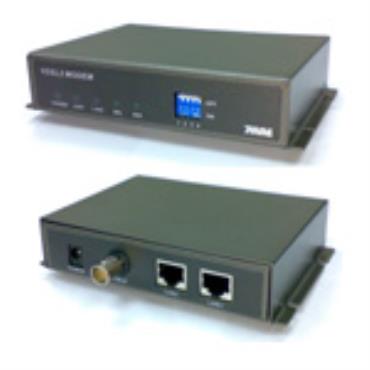

V102-BNC is a Cable LAN Extender providing a broadband transmission up to 100/60Mbps for downstream/upstream over coaxial cable for point-to-point Ethernet connectivity. With 100/60Mbps data rate, V102 Series supports transmission distance up to 300 meters and 30/10 Mbps for 1km long range connection. Users may also select a fixed data rate or a fixed SNR margin for different coaxial cable ranging.
With plug and play features and minimum installation time, a pair of V102-BNC offers a cost effective solution for bandwidth-hungry applications such as video streaming and FTTB over single coaxial cable.
Features:
l ITU-T G.993.1, G.993.2 VDSL/VDSL2 and SG15Q4 DMT Compliance
l 100/60Mbps DownSream/UpStream for distance up to 300 meters
l Trellis Coding support up to 1024 Discrete Multi-Tone (DMT) bin
l Supports Cable connection up to 2000 meter
l Selectable Fast and Interleaved modes
l Selectable fixed data rate and fixed SNR margin
l Auto MDIX for 10/100 BaseT Ethernet LAN Ports
l 4 Dip Switches for Master/Slave Configurations
l Low-Latency for Video/Voice/Data applications
Technical Specifications:
VDSL Transmission:
l ITU-T G.993.1/2, SG15Q4 DMT Compliance
l Trellis Code with 1024 DMT bins
l Max Data Rate: 100/60 Mbps
l BNC Connector x1
LAN Interface:
l Auto-Detection for 10/100 BaseT and Half/Full duplex
l High performance bridge for Ethernet extension
l Fully compatible with IEEE802.3/IEEE802.3u
l Automatic MDIX Function,
l RJ-45 Connector x 2
LED Indicators:
l POWER: Power is ON
BNC: Cable Loop Connection Status
l LAN1: Data Activity of LAN Port1
M/S: Master/Slave Selection
l LAN2: Data Activity of LAN Port2
Physical Dimension:
Desktop: 120 x 90 x 29 (mm)
Power:
5VDC 2A
Operating Environment:
l Humidity: 5% to 95% non-condensing
l Temperature: 0 ~ 50 degree C
Regulatory Compliance:
l FCC Rules Part 15
l CE
