Technical Specifications:

VDSL Transmission:

l ITU-T G.993.1/2, SG15Q4 DMT Compliance

l Trellis Code with 1024 DMT bins

l Max Data Rate: 100/60 Mbps

l RJ-11 Connector x 1(For V101 Model)

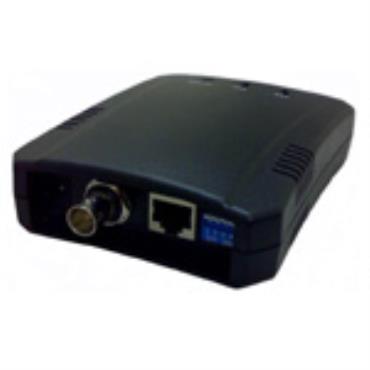

l BNC Connector x1(For V101-BNC Model)

POTS Interface (For V101 Model):

l Optional Annex A, B, or C

l RJ-11 Connector x 1

LAN Interface:

l Auto-Detection for 10/100 BaseT and Half/Full duplex

l High performance bridge for Ethernet extension

l Fully compatible with IEEE802.3/IEEE802.3u

l Automatic MDIX Function,

l RJ-45 Connector x 1

LED Indicators:

l POWER:        Power is ON.

l DSL:               VDSL Loop Connection Status

l LAN:              Data Activity of LAN Port.

Physical Dimension:

Desktop: 120 x 90 x 28 (mm)

Power:

5VDC 2A

Operating Environment:

l Humidity: 5% to 95% non-condensing

l Temperature: 0 ~ 50 degree C

Regulatory Compliance:

l FCC Rules Part 15

l CE
