YAP-2730P output power can add up to 30dBm@11Mbps, 27dBm@54Mbps.

It is for High Power Wireless Solution designed for Wireless ISP Services, Hot-Spot, and Backbone.

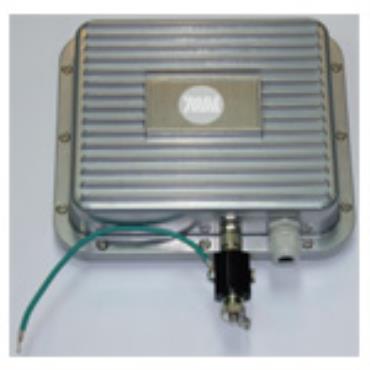

This devices increases the effective range and coverage area of the wireless networking of 802.11b/g. It builds with intergrated powerful radio in an weather-proof enclosure and offers a cost-effective solution for hotspot to perform Point-to-Point and Point to multi-Point application.

Built-in N-Type connector for additional High-Gain antenna .

Features

?          Complies with IEEE 802.11b/g standard for 2.4GHz Wireless LAN.

?          Supports multi-operation (bridge/gateway/WISP) modes between wireless and wired Ethernet interfaces.

?          Supports 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption function to protect the wireless data transmission.

?          Supports IEEE 802.1x Authentication.

?          Support Wi-Fi Protected Access Authentication with Radius and Pre-Shared Key mode.

?          Supports Inter-Access Point Protocol (IAPP).

?          Supports Wireless Distribution System (WDS).

?          Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.

?          Supports DHCP server to provide clients auto IP addresses assignment.

?          Supports DHCP client for WAN interface auto IP address assignment from ISP.

?          Supports PPPoE on WAN interface.

?          Supports PPTP Client on Ethernet WAN interface.

?          Supports clone MAC address function.

?          Supports firewall security with port filtering, IP filtering, MAC filtering,

?          port forwarding, trigger port, DMZ hosting and URL filtering functions.

?          Supports WEB based management and configuration.

?          Supports UPnP for automatic Internet access.

?          Supports Dynamic DNS service.

?          Supports NTP client service.

?          Supports Log table and remote Log service.

?          Support Setup Wizard mode.

?          Support DoS (Denial of Service) function.

?          Supports Up to 30dBm@11Mbps, 27dBm@54Mbps

VPN Router

?          Supports Virtual Private Network (VPN) connection.

?          Supports IPSEC tunnel encryption (3DES/AES128) and authentication (MD5/SHA1)

Applications include:

l         Point to Multi-Point wireless network

l         Point to Point wireless bridge
