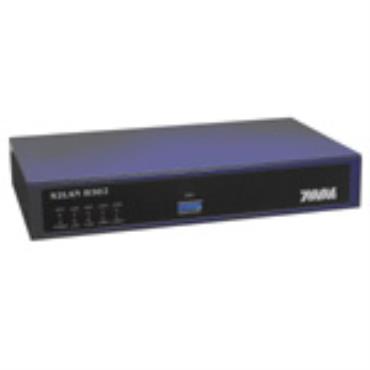

The STU-LAN H302, a 2-Pair SHDSL LAN Extender, provides a broadband transmission speed up to 10.7 Mbps, through SHDSL connection over two pairs copper line for point-to-point LAN connectivity between two Ethernet sites. With its rate adaptive features, H302 provides longer reach on transmission distance. Users can also select a fixed data rate for the copper line ranging from 128 Kbps to 10.7 Mbps.
A pair of STU-LAN H302 offers a cost effective solution for bandwidth-hungry applications such as video-conferencing and distant learning over two twisted pairs telephone line. H302 is indeed an ideal symmetrical broadband solution for LAN-to-LAN connectivity, Internet Access and VoIP applications.
Features:
l ITUT G.991.2 Compliance
l SHDSL Line Code: TCPAM
l Fixed Data Rate Selection from 64Kbps to 4608Kbps for each pair
l Adaptive Multi Rate from 192Kbps to 5760 Kbps for 1-Pair SHDSL
l Adaptive Multi Rate from 384Kbps to 10700 Kbps for 2-Pair SHDSL
l Maximum Distance: 22500 ft over 26AWG twisted pair
l Two RJ-45 LAN ports for 10/100 BaseT Ethernet LAN connection
l Auto MDIX for Ethernet LAN Ports
l VLAN Function for two LAN port (Optional)
Specifications:
SHDSL Transmission:
l ITU-T G.991.2 Compliance
l TCPAM – 16 Level Line Code
l Rate: 64 Kbps ~ 5.7 Mbps (1-pair)
128 Kbps ~ 10.7 Mbps (2-pair)
LAN Interface:
l Auto-Detection for 10/100 BaseT and Half/Full duplex
l High performance bridge for Ethernet extension
l Fully compatible with IEEE802.3/IEEE802.3U
l Automatic MDIX Function,
l RJ-45 Connectors x 2
LED Indicators:
l POWER: Power is ON.
l TEST: H302 Self Test.
l LAN1: Data Activity of LAN1 Port.
l 100M: LAN1 port is in 100M Ethernet connection.
l LAN2: Data Activity of LAN2 Port.
l 100M: LAN2 port is in 100M Ethernet connection.
l LOOP1: SHDSL Loop 1 connection status.
l LOS1: SHDSL Loop1 is in Loss of Signal.
l LOOP2: SHDSL Loop 2 connection status.
l LOS2: SHDSL Loop 2 is in Loss of Signal.
Physical Dimension:
Desktop: 261x151x44 (mm)
Weight:
Desktop: 2.5 kgs
Power:
Desktop: 110/220 VAC
Operating Environment:
l Humidity: 5% to 95% non-condensing
l Temperature: 0 ~ 50 degree C
Regulatory Compliance:
l UL Safety
l FCC Rules Part 15 Class A
l CE
