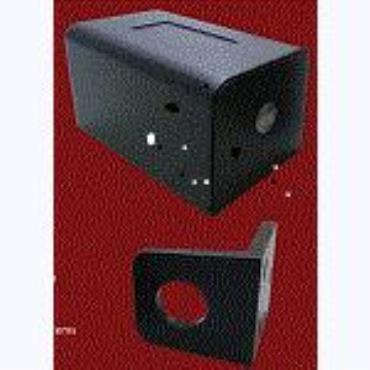

The YR10 is a low voltage motor driven lock suited for securing large rolling, tilting, hinged or sliding doors. It is supplied with a matching strike plate and can be installed internally or externally given its tamper proof design. A solid 18mm diameter stainless steel bolt pin ensures the highest strength while a bolt pin extension of 35mm offers flexible installation.

Integrated electronics provide complete control over the lock and offer an array of features;

? Multi–voltage input (12-24VDC)

? Multiple locking / unlocking attempts to correct miss-aligned doors

? Selectable automatic locking when the door closes

? Fail safe / Fail secure user selection with a single switch

? Door position monitoring

? Bolt locked and Bolt unlocked monitors

The lock incorporates a keyed manual override and wiring can be run securely through the locks base or externally through a 20mm wiring gland.
