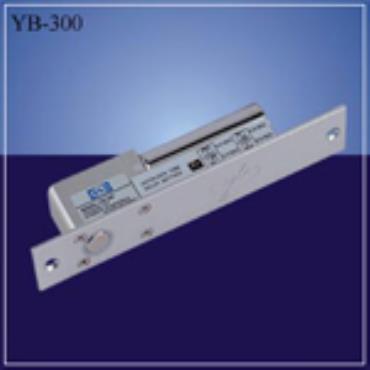

YB-300 Fail safe electric bolt with magnetic feature (12/24V)
Shenzhen YLI Electric Locking Equipment Co., Ltd.
Region: China
Update: 2010/04/27
INQUIRY
Key Specifications
YB-300+ Fail safe electric bolt with magnetic feature (12/24V)
YB-300+
Fail safe electric bolt with magnetic feature (12/24V)
|
|
|
Main Product description
|
Face Plate: |
205Lx35WX40H(mm) |
Strike: |
90Lx25Wx2H(mm) |
Bolt: |
16mmDIA,stainless steel 16mm throw |
Voltage: |
DC12V~DC24V |
Start Current: |
900mA |
Standby Current: |
150mA |
Solid Bolt: |
polishing housing, 800Kg Holding Force |
Suitable For: |
Woodeng Door,Glass Door,Metal Door,Glass Door |
Autolock Time Delay: |
0,3,6,9sec. |
Signal Output: |
Door status Output,NC/COM |
Surface Temp: |
Low Temperature |
Induction Distance: |
8mm |
Operating temp: |
-10~+25℃（14-131F） |
Operating Humidity: |
0~90%(non-condensing) |
Special Designed: |
Tested to 500000 cycles |
Face place material: |
High Aluminum,Carrulous Line Finished |
Aptional Bracket: |
ABK-600 ABK-601 ABK-500 ABK-700 |
Weight: |
0.7kg |
Standard Packing: |
30pcs. |
|
Product function & specification
|
Fail Safe: |
Locked when energized |
Voltage: |
DC12V~DC24V |
Suitable For: |
Woodeng Door,Glass Door,Metal Door,Glass Door |
Signal Output: |
Door status Output,NC/COM |
Autolock Time Delay: |
0,3,6,9sec. |
|
Core technology description
|
Surface Temp: |
Low Temperature |
Special Designed: |
Tested to 500000 cycles |
Face place material: |
High Aluminum,Carrulous Line Finished |
|
