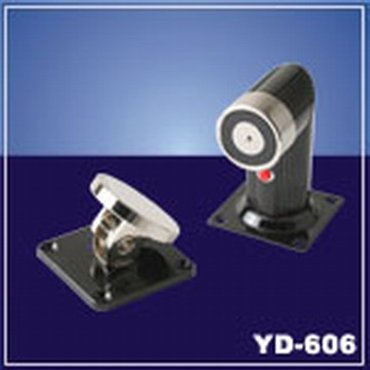

Parameters

．

Dimensions: 80L x 80W x 115H(mm)

．

Holding Force: 70kg(150Lbs)

．

Voltage: 12/24VDC + 10%

．

Current Draw: 12V/100mA, 24V/50mA

．

Optional:

The Hand Moves and Closes the Door to Release the Button

．

Suitable for:

All Kind of the Single & Double Smokeproof Door

．

Surface Temp: ≤+20℃

．

Operating Temp: -10～+55℃(14-131F)

．

Suitable Humidity: 0~90%(non-comdensing)

．

Finishes for Shell: High Temperature Paint and Environmental Protection Zinc

．

Finishes for Armature: Zinc

．

Weight: 1.06kg

．

Standard Packing: 18pcs

Core Technology Description

．

Collinear Load Test 70kg,150pounds

．

Dual Voltage 12 or 24 VDC(optional)

．

The Standad Voltage is 12VDC when Finished

．

MOV Provides Reverse Current Protection

．

Low Power,Environmental Protection

．

Anti-Residual Magneism Designed

．

Professional Designe, Dual Insulative Housing

．

Shunt and Defend the Cigarette Door Automatically During the Fire Alarm

．

With the Hand Moves and Closes the Door to Release the Button

．

CE Certificate by European Union

Except for human activities

In the non-human factors of product quality issues, the Company magnetometer lock products are provided by three years of quality assurance services, and electric power plug lock locking warranty to two years; out switch, power supply and support me for a warranty , Under other conditions caused by damage to the product maintenance costs of materials and other costs of its own.

Statement

Intended to retain the electronic specifications of the product, the right to amend, the content of the Model parameters have to change all the time, we do not notice. Model of the picture and the content of e-Lin Yi without written consent shall not be used in any way.
