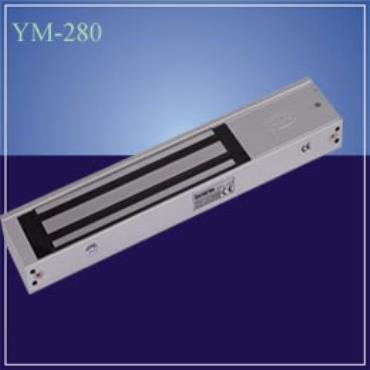

Armature plate: 180Lx38Wx11H(mm)

Holding Force: 280kg(600Lbs)

Voltage: 12/24VDC??10[[]%]

Current Draw: 12V/500mA 24V/250mA

Aptational Bracket: ABK-280UL ABK-280L ABK-280ZL

Signal Output: Dry Contact,Max Rating of Contact Current 3A

LED indicaes the door is unlock,Green indicates the door is lock

Suitable for: Wooden door , Glass door ,Metal door , Fireproof door

Surface Temp: ???20

Operating Temp: 10°??55(14-131F)

Suitable Humidity: 0~90[[]%](non-comdensing)

Finishes for Shell: Anodized alninum

Finishes for Magnetic: Zinc

Finishes for Armature: Zinc

Weight: 2kg

Standard Packing: 12pcs
