Frequency: US（902～928MHz）, China（920～925MHz）, EU（865～868MHz）, other frequency selectable

Protocol: ISO18000-6B/6C, EPC G2

RF Power: 0～31dBm adjustable

Sensitivity: -80dBm(9dBi antenna more than 6m）

Read Speed: Multi-tag200pcs/second, single tag 2000 times/minute

Processor: ARM CORTEX M3 100M CPU

Memory: 16KB tag data memory and 32KB ferroelectric memory

Data Interface: 100M Ethernet interface （TCP/IP）

              RS232/RS485 interface, Wiegand 26/34 interface

              One team input and one team output（TTL)，one team Relay

Power Supply: DC：+9V～+15V

Certifications： FCC, CE, CCC

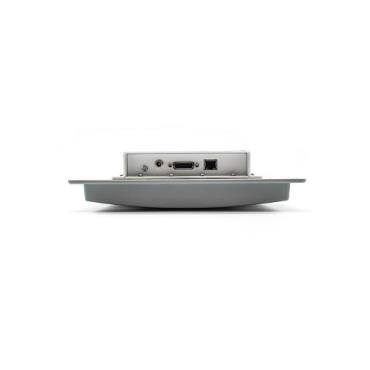

Product display

 1. MR6121E UHF RFID reader base on new generation reader technology platform development

2. MR6121E UHF long range integrated RFID reader is more stable and can use in various applications.

3. RFID reader is communicated wirelessly through the antenna and RFID tag

4. Realizing the read of tag identification codes and memory data, controlling unit and the reader antenna

5. The reader is also called reading device，RFID lector, RFID Antenna,communication device and scanner reader.

6. The electromagnetic clutch is coupled with radar principle

7. Inductively coupled with transformer model

Advantage

1. Built-in 7dBi circular polarization antenna

2. 6 meters reading range with standard PVC card tag (IC Alien H3) on lab testing.

3. Integrated design,water-proof and dust-proof

4. Easy usage for items tracking especially on car parking lot, Warehouse inventory, Produce line status control, ETC ( Electronic Toll Collection), Safe City system and vehicle tracking system

5.Microwave RFID card reader reaches strong penetrability

6.Continuous testing stability to ensure long stable work under simulation case

7. Middle communication distance and anti-collision performance

8. Strong security, stability and fast read speed reading

9. Multi-interface like TCP/IP, Wiegand, RS232, RS485 and GPIO, easy used to many real application projects.
