Parameter

Material: ABS （ flame retardant）

Dimension: 315*195*68mm

Weight: 2kg

Way to install: wall-mounted

Color: blue

Identify type:  Directional identification, horizontal 60℃，vertical 60℃

Signal modulation mode: GFSK

Traffic rate: 1Mbps

Working frequency: 2440MHz

MAX receive sensitivity: -85dbm

Antenna Gain: 2dbi，dual polarization

Communication interface:

RS232 (TCP to RS232 converter )

  Baud rate: 115200bps

  data bits:8

  stop bit：1

  check bit：N

RS485

  Baud rate: 115200bps

  data bits:8

  stop bit：1

  check bit：N

RJ45

  10/100self-adaption

  Power supply features

Working current

   < 300mA

Working voltage:9V DC

certification: CE,FCC, 3C

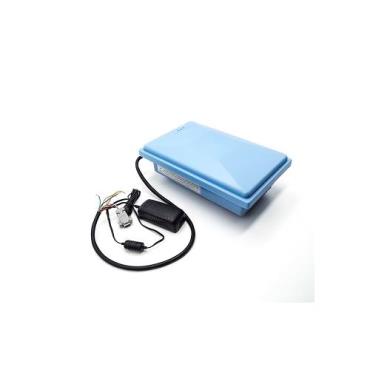

Product display

1. MR3104E directional reader is suit for directional identify

2. MR3104E apply in far distance, quick identification, meeting the special demand of identification

3. It`s capable of identifying, tracking and orientating more than 100pcs active tags simultaneity

4. RFID reader is communicated wireless through the antenna and RFID tag

5. Realizing the read of tag identification codes and memory data, controlling unit and the reader antenna

6. The reader is also called reading device，communication device, lector and scanner reader

7. The electromagnetic clutch is coupled with radar principle

8. Inductively coupled with transformer model
