Poe protocol: IEEE 802.3af/at

Poe pin: compatible with two power supply modes, 12 / 36-a and 45 / 78-b

Port rate: 10 / 100 / 1000Mbps

Gigabit Poe separator

Ps1218tg complies with IEEE 802.3af/at standard and has a transmission rate of 10 / 100 / 1000Mbps.

● support IEEE 802.3af/at Ethernet power supply standard

● support 10 / 100M and 10 / 100 / 1000m data transmission

● PD power receiving terminal supports 50-57v various voltage transfer, which is convenient for users to use UPS DC power supply

● it can provide 5V / 3.5A, 12V / 2a, 18V / 1A voltage, and adapt to various small network equipment

● circuit isolation protection, effective protection of electrical equipment

● high quality design effectively ensures the stability and reliability of the equipment

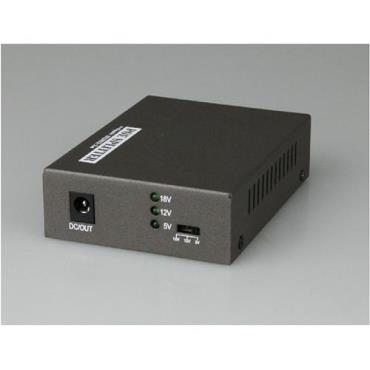

Ps1218tg separator is an economical and practical Poe remote power receiving device with high performance and high reliability, which is based on IEEE 802.3af/at standard. It can separate the power transmitted through the network cable from the data signal. Ps-1218 can be used with power supply equipment (such as pse808) conforming to IEEE 802.3af and at standards to provide data and power supply for network equipment that does not support Poe at the same time. Ps-1218 can output three voltages of 5V / 12V / 18V. When used with power supply equipment, it can flexibly expand home network and office network without being limited by power line layout.
