- increases safety by covering a greater field of vision than mirror classes II, IV(R46 compliance)

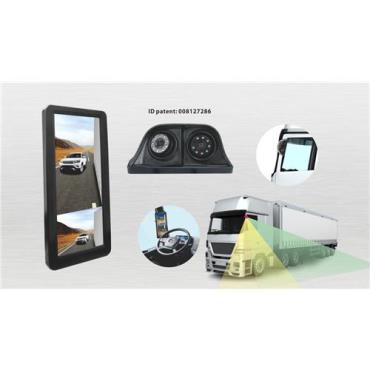

- includes 2 AHD 720P IP 69K cameras mounted on the side of a vehicle

- 12.3” split-screen AHD monitor to display the camera images in real time

- PAL/NTSC mixed input of different formats supporting AHD/ CVBS video signals (adaptive)

- Brightness, contrast, saturation, chroma and sharpness can be independently set for each input video signal

- Support parking stall delay video recording (24-hour parking monitoring function);

- Max. support 512GB memory card

- Easy to upgrade system to the latest programs through video cards

Monitor Spec:

- Screen size: 12.3” IPS panel

- Scree ratio: 8 : 3

- Resolution: 1920(H) x RGB x 720(H) Pixel

- Brightness: 750cd/m2

- Video input: 2 video inputs

- Power supply: DC 12V-36V

- Power output to the cameras: DC 12V

- automatic backlighting for screen, automatically adjust to the brightness of environment

DVR function(optional):

- Chipset: HI 3520(V300)

- Compression format: H.264

- Video inputs: 2CH supported

- Video format: AHD 1080P / AHD 720P / 960H / D1-720x480(CVBS)

- Video resolution: 1920x1080 / 1280x720 / 1024x768 / 800x600

- Storage capacity: external TF card up to 512 GB (circular overlay)

- 2CH video recording and playback simultaneously

Camera spec:

- Image sensor: 1/3” SONY IMX225

- USEFUL PIXELS: 1280(H)x720(V)

- Definition: AHD 720P

- Min illumination: 0.1Lux

- Wide Dynamic: 91dB

- Lens Angle: top cam: 74°(H)/42°(V) ; bottom cam: 56°(H)/33°(V)

- Waterproof IP rating: IP 69K

- Operation voltage range: DC12V
