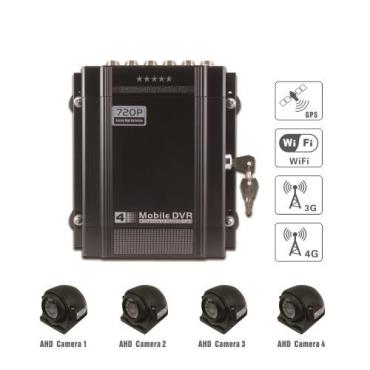

1.The hardcore adopts ARM11 (main frequency 600 MHZ) professional high-performance processor, equipped with 2 gbit (256 MB) high-speed DDR3 RAM;

2.Supports 4CH AHD (Analog High Definition)720P video recording, downward compatibility 960H,D1, VGA,HD1 and CIF video recording;

3.Adopts h.264MP (Main Profile Level5.0) video compression technology,which will save two-third storage capacity;

4.Supports GPS and automatically update date/time.Can use Google map to track the moving path when playback videoes or remotely monitor on PC;

5.Supports RJ45,WIFI,3G/4G,CMS will provide matching network server platform to realize the remote centralized monitoring management.

6.Supports a 2.5 inch SATA standard 4TB large-capacity hard disk and a 128GB SD/SDHC/SDXC CARD;

7.Supports power off delay after ACC+ is disconnect, the power off delay time will be optional according to the range: 0~999(minute)

8.Supports CVBS and VGA output at the same time, will be easily for user to monitor on large LCD screen .

9.Supports 4CH alarm input and 1CH alarm output ;

10.Supports RS485 communication,support multiple PTZ device to access;

11.Supports operate system and configurate parameter by using USB mouse ;

12.Supports boot record, timing record, cyclic covering;

13.Supports user-defined channel name and device ID/plate number to make use,maintenance and management more easier ;

14.Provide camera power supply with PPTC protect and adopts fan convection cooling system design at the same time to guarantee the stability of system operation.
