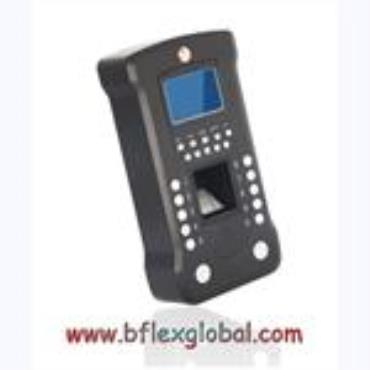

Different users have different requests, different products have different characteristic, different application fields have different plan. BF5 with the engineering plastics has the best cost performance. Card, fingerprint, code function get together, make this device accord with extensive requirements of market. Designed by Taiwan design team, it looks fashion.

Sensor Size 16mm*14mm

Dimensions 170mm×90mm×35mm, 0.8kg

Image Scan Time < 0.5 seconds

Real time output

RFID card reader (extra card reader)

Verification Speed < 0.5seconds (1:500fingers)

False Acceptance Rate < 0.0001%

False Rejection rate < 0.001%

Matching Method 1:N, 1:X (with Group ID)

Template Storage 5600 fingerprint templates

OR 2800Users (2 fingers and 1 pincode and 1 card with one user ID)

Backup Option Fingerprints or Password or Card

Operating Method Standalone

Manager Log Capacity 1000 Lines

In/Out Log Capacity 60 000 Lines

Communication RS485, Wiegand26, TCP/IP,RS232-USB port, USB disk

CARD reader function RFID 125KHz

Access controller output Wiegand 26

Access controlle simple controller (Build inside)

2 pins for push button

Relay output to Em lock (NO,COM,NC)

Operating Humidity 20%-80%

Operating Temperature -10°C - + 50°C

Voltage Supply 6V - 12VDC@1A

Power Consumption < 2W

Supported Language(can be update according requests) Chinese

Chinese

English

French

Spanish

Simple access controller With simple controller (external/optional)

Additional Features Function Keys, In/Out buttons, Bell, Waterproof, Green and Red light for verification
