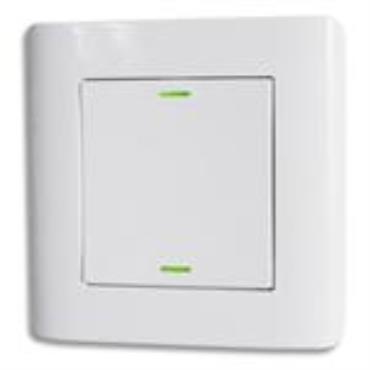

WL-SFB-A01 wireless wall switch has wireless Zigbee control chips built-in. Light brightness can not only controlled by button from the local, but also can be controlled by gateway terminal devices in wireless Zigbee network. The terminal devices can be mobile phone, tablet, common PC and other mobile devices.

WL-SFB-A01 meets IEEE802.15.4 Zigbee HA protocol standard and is suitable for any Zigbee HA protocol network.

Main Features

ZigBee device type: On/Off Light Switch

Compatible with ZigBee HA protocol

Comply with human engineering design

Compact size and elegant appearance

Simple operation and flexible installation

Multiple colors to be selected

Technical Parameter

Communication Range

Indoor 50m

Working Voltage

220 V

Bandwidth

2.4-2.4835 GHz

Working Humidity

Max 95%RH

Communication Mode

IEEE802.15.4(ZigBee)

Working Temperature

-5~50℃

Standby Current

100 uA

Receiving Current

23 mA

Transmitting Current

33 mA

Loading Target

Incandescent lamp, tungsten halogen lamp

Adjustable electromagnetic low-voltage lamp

Adjustable electronic low-voltage lamp

Loading Ability

2A

Dimension

86*86*55mm
