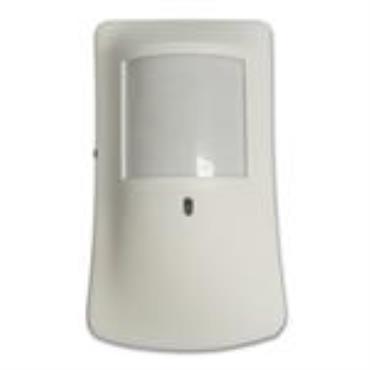

Wireless IR Motion Detector
Nanjing IOT Sensor Technology Co.,Ltd
Region: China
Update: 2019/04/12
INQUIRY
Key Specifications
High sensitivity and superior SNR
High stability for temperature changes
Powerful anti-interference ability, for instance, the interference from vibration or RF
Low power consumption and good hidden ability
Superior cost performance
Technical Parameter
Working Power:
three 1.5 V AA batteries or 12 V DC
Detection Type:
Motion Detection
Communication Mode:
IEEE802.15.4(ZigBee)
Bandwidth:
2.4-2.4835GHz
Detection Mode:
Passive Infrared
Detection Coverage:
Radius 6 m, 120 Degree Angle
Installation Height:
2.5 meters
Standby Current:
0.8 uA
Emission Current:
30 MA
Initial Time:
30 ~ 60 seconds
Communication Range:
50m
Working Temperature:
-10 ~ 50℃
Working Humidity:
Max. 95% RH
Product Dimension:
80mm×60mm×34mm
